(7-24) - FLOTATION SPRING ASSEMBLY, LEFT & RIGHT

Запчасти Case IH 8340 (7-24) - FLOTATION SPRING ASSEMBLY, LEFT & RIGHT (58) - ATTACHMENTS/HEADERS

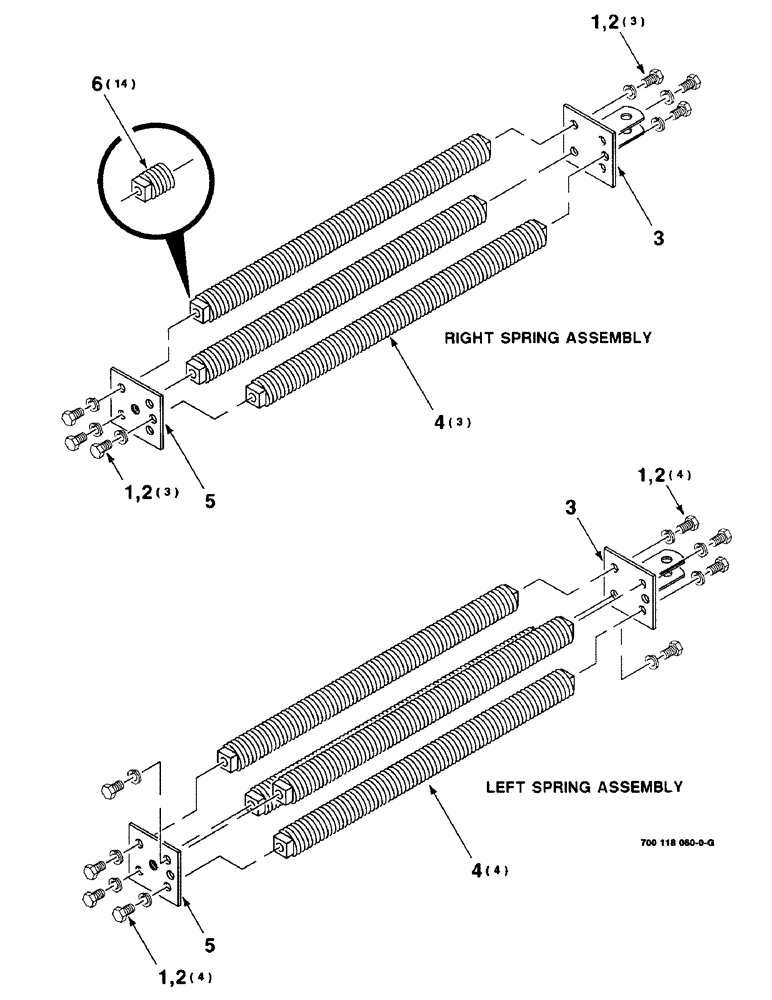

Схема запчастей Case IH 8340 - (7-24) - FLOTATION SPRING ASSEMBLY, LEFT & RIGHT (58) - ATTACHMENTS/HEADERS
2
1
1
3
2
5
6
2
1
5
3
2
4
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8-11 X 1 C

14шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

14шт.

3

700118061

MOUNTING PARTS

MOUNTING WA - spring, lower

2шт.

4

700115183

SPRING

ASSEMBLY (Includes Item 6)

7шт.

5

700118064

MOUNTING PARTS

MOUNTING WA - spring, upper

2шт.

6

299230

PLUG

- spring

14шт.
