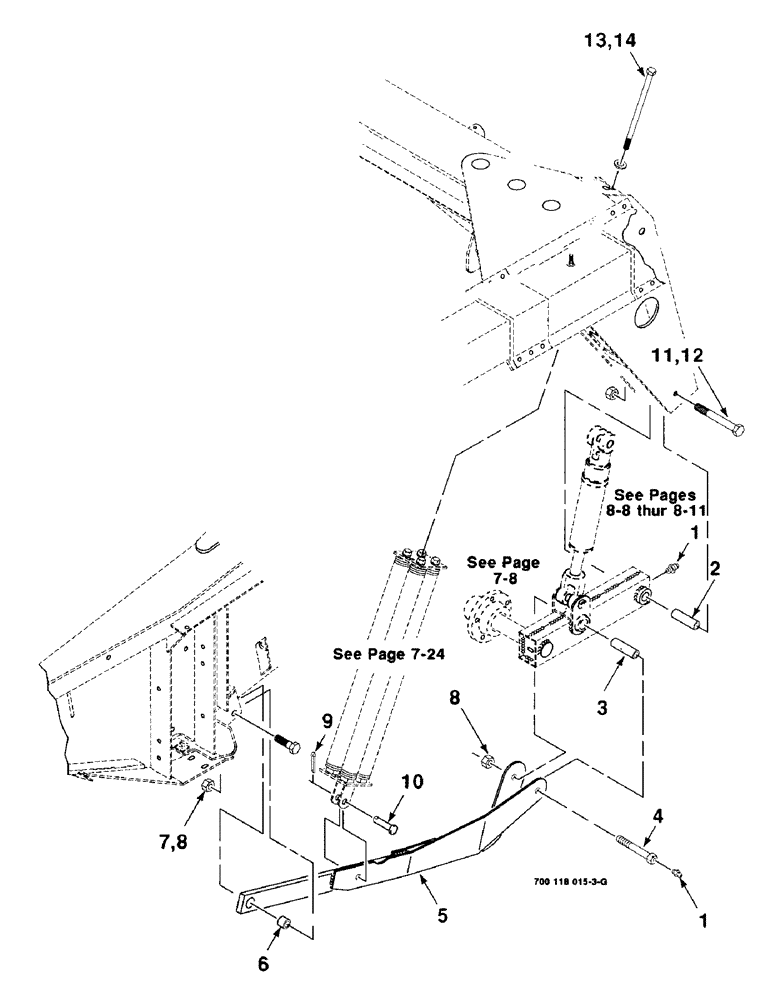

Запчасти Case IH 8340 (7-20) - FLOTATION HEADER ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

2

700118054

BUSHING

- strut

1шт.

3

700118279

BUSHING

- arm, lower

1шт.

4

700118278

BOLT

- special

1шт.

5

700118068

ARM

WA - lower, left

1шт.

6

700118055

BUSHING

1шт.

7

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

8

230-42112

LOCK NUT,3/4"-10, GA

3/4-10 HCLN GR/B

2шт.

9

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

10

A35113

PIN

- clevis

1шт.

11

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4-10 X 6 C

1шт.

12

425-1012

NUT,3/4"-10, G5

3/4-10

1шт.

13

7773658

BOLT

3/4-10 X 14 B

1шт.

14

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.
