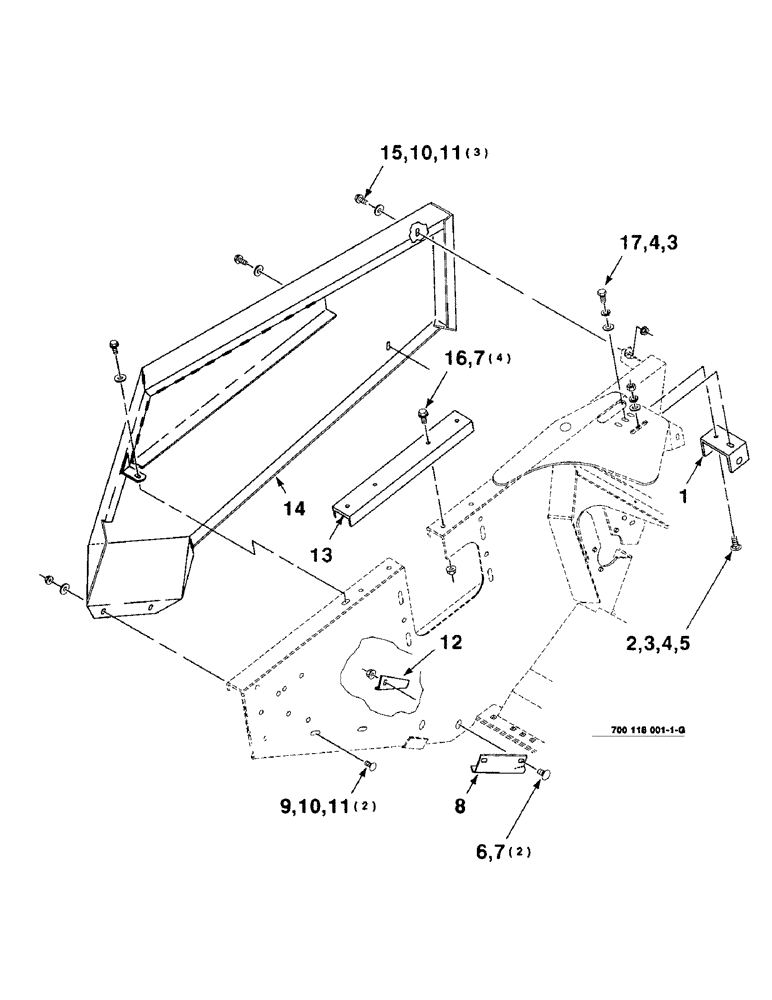

Запчасти Case IH 8340 (7-16) - HEADER SHIELDS ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700118205

CHANNEL

WA

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

6

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

6581185

GUARD

- right

1шт.

700122890

GUARD

- right

1шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

10

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

5шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

12

700111394

SHIELD

1шт.

13

700118212

CHANNEL

1шт.

14

700118196

SHIELD

WA - right

1шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

16

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

4шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.
