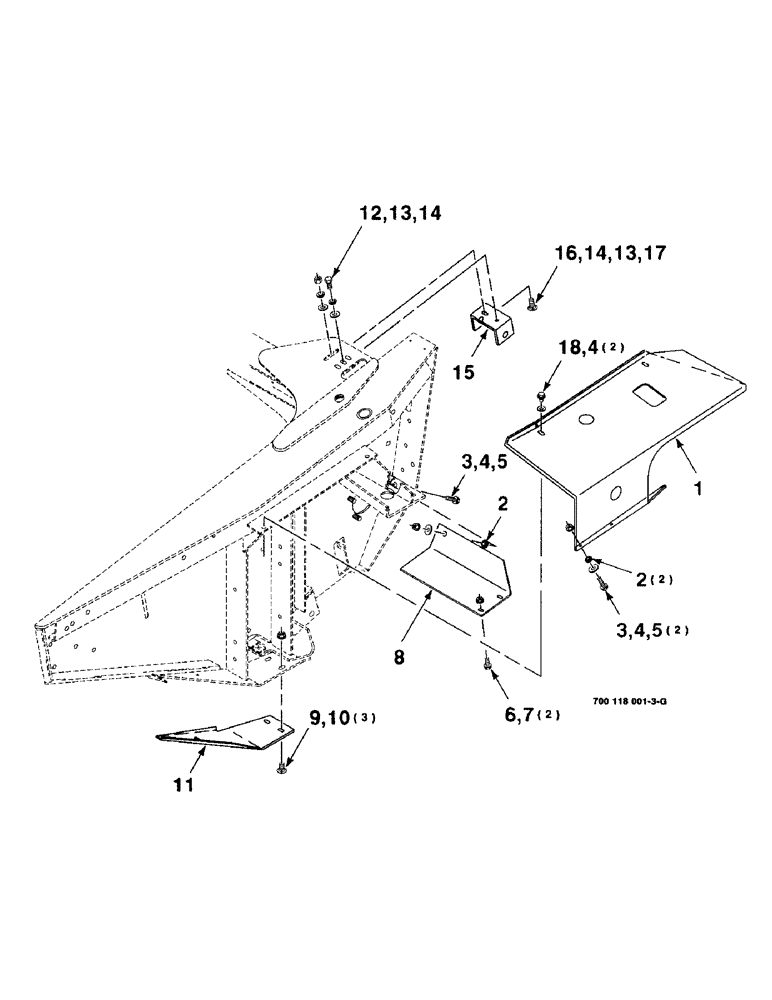

Запчасти Case IH 8340 (7-14) - HEADER SHIELDS ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700118201

SHIELD

1шт.

2

727768

GROMMET

3шт.

3

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

4

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

5шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

8

700118203

SHIELD

- lower

1шт.

9

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

10

231-5146

FLANGE NUT,3/8"-16

3шт.

11

700118207

DIVIDER

- left

1шт.

12

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

15

700118205

CHANNEL

WA

1шт.

16

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.
