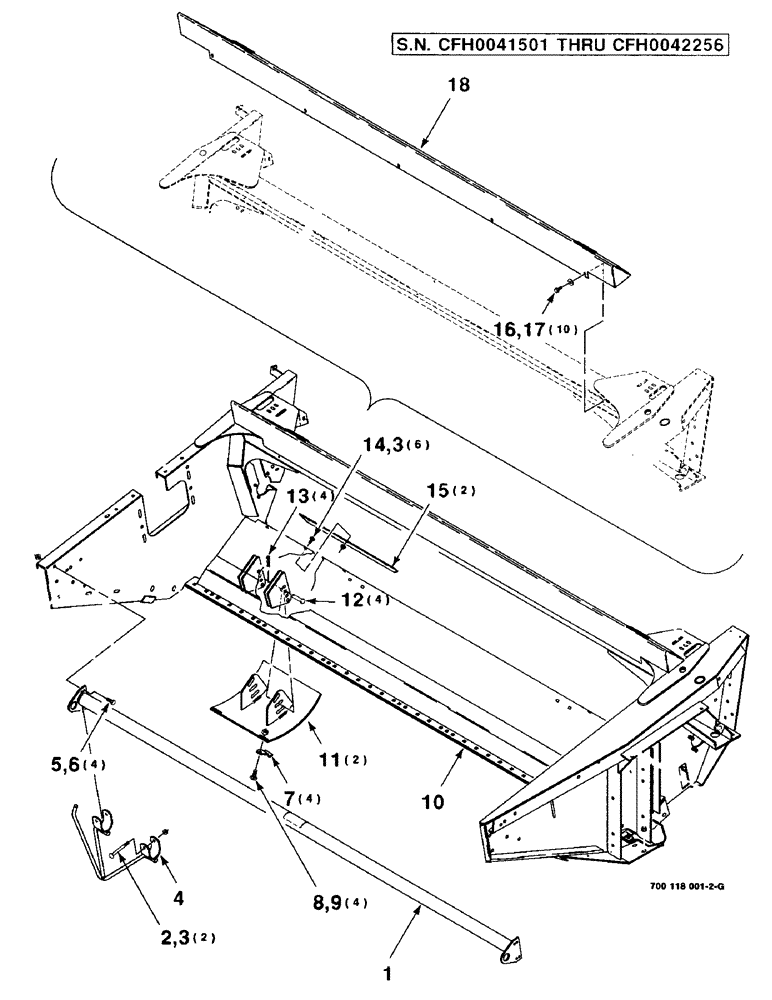

Запчасти Case IH 8340 (7-12) - HEADER & SKID SHOE ASSEMBLY (58) - ATTACHMENTS/HEADERS

700707694

CYLINDER

HYDRAULIC CYLINDER COMPLETE

2шт.

1

453712

DECAL

LEAN BAR

1шт.

2

7770399

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3 1/2", Gr 5

5/16-18 X 3-1/2 RHSNB

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

4

700118192

DIVIDER

WA

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

6453799

CLIP

4шт.

8

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

4шт.

9

425-107

NUT,7/16"-14, G5

7/16-14 H

4шт.

10

700118019

HEAT-EXCHANGER

HAEDER WA

1шт.

11

700118209

SHOE

WA - skid

2шт.

12

CAS763631

PIN

CLEVIS - pin

4шт.

13

T54573

PIN

.120 WIRE HAIR PIN COTTER

4шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

15

700118204

SHIELD

2шт.

16

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

10шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

10шт.

18

700118215

SHIELD

WA (S.N. CFH0041501 THRU CFH0042256)

1шт.
