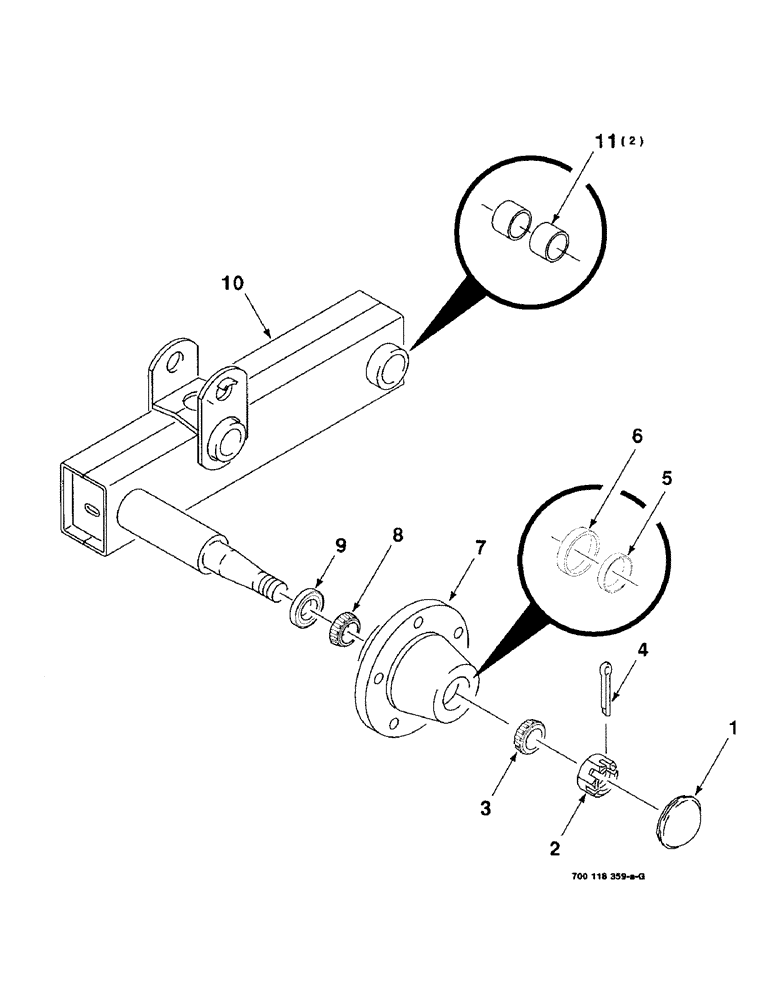

Запчасти Case IH 8340 (7-10) - HUB, AXLE & STRUT ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

T27814

CAP

1шт.

2

704346

BRACKET

1-14 SLOTTED HEX NUT

1шт.

3

E13994

BEARING,25.4mm ID

CONE - bearing

1шт.

4

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

5

50104

BEARING CUP,50.01mm OD

CUP - bearing

1шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

7

384347

HUB

ASSEMBLY (Includes Item 5 & 6)

1шт.

8

618026R91

CONE

- bearing

1шт.

9

H754804

OIL SEAL

SEAL (S.N. CFH0041501 Thru -0041681)

1шт.

700709841

SEAL

(S.N. CFH0041682 and Later)

1шт.

10

700118357

STRUT

WA -right (Includes Item 11)

1шт.

11

52779

BRONZE BUSHING

BUSHING - oilite

2шт.
