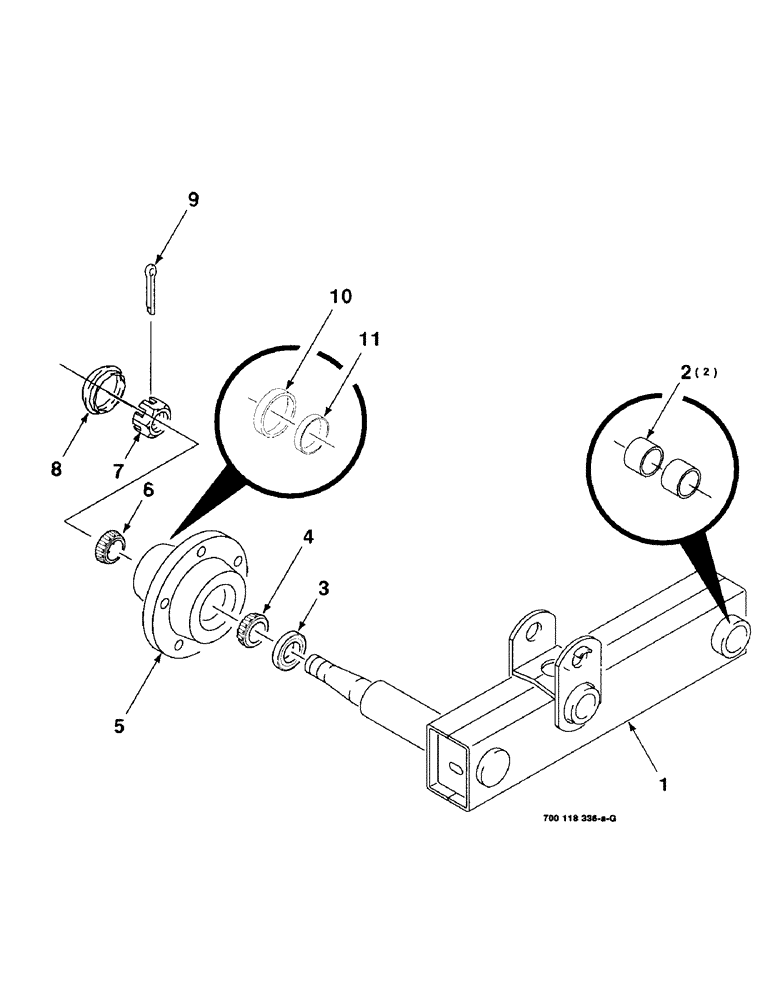

Запчасти Case IH 8340 (7-08) - HUB, AXLE & STRUT ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700118358

STRUT

WA - left (Includes Item 2)

1шт.

2

52779

BRONZE BUSHING

BUSHING - oilite

2шт.

3

H754804

OIL SEAL

SEAL (S.N. CFH0041501 Thru -0041681)

1шт.

700709841

SEAL

(S.N. CFH0041682 and Later)

1шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing

1шт.

5

384347

HUB

ASSEMBLY (Includes Items 10 & 11)

1шт.

6

E13994

BEARING,25.4mm ID

CONE - bearing

1шт.

7

704346

BRACKET

1-14 SLOTTED HEX NUT

1шт.

8

T27814

CAP

1шт.

9

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

11

50104

BEARING CUP,50.01mm OD

CUP - bearing

1шт.
