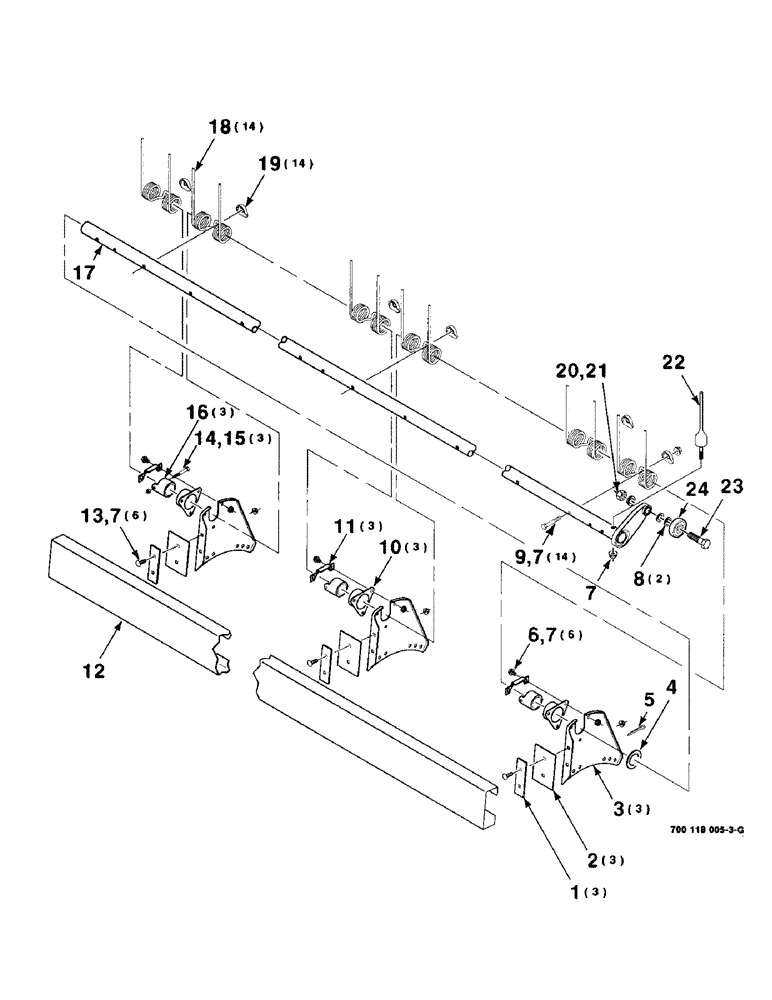

Запчасти Case IH 8340 (6-08) - REEL BAT & TINE ASEMBLY, TINE TUBE ASSEMBLY "B" (58) - ATTACHMENTS/HEADERS

1

700114543

RETAINER

3шт.

2

700114544

LARGE PLATE

PLATE - reel

3шт.

3

700118351

SUPPORT

- bearing

3шт.

4

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

5

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

27шт.

8

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

9

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

14шт.

10

6105621

FLANGE

HOUSING - bearing

3шт.

11

6831986

COVER

- bearing

3шт.

12

700118345

BAT

- reel

1шт.

13

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

14

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

3шт.

15

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

16

6105159

NYLON BEARING,1.75"

BEARING - tine

3шт.

17

700118353

TUBE

WA - tine, "B"

1шт.

18

750075

TINE

- double

14шт.

19

261024

CLIP

- tine

14шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HEX JAM NUT GR 2

1шт.

22

756163

TINE

- single

1шт.

23

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 X 2-1/4 C SPECIAL

1шт.

24

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.
