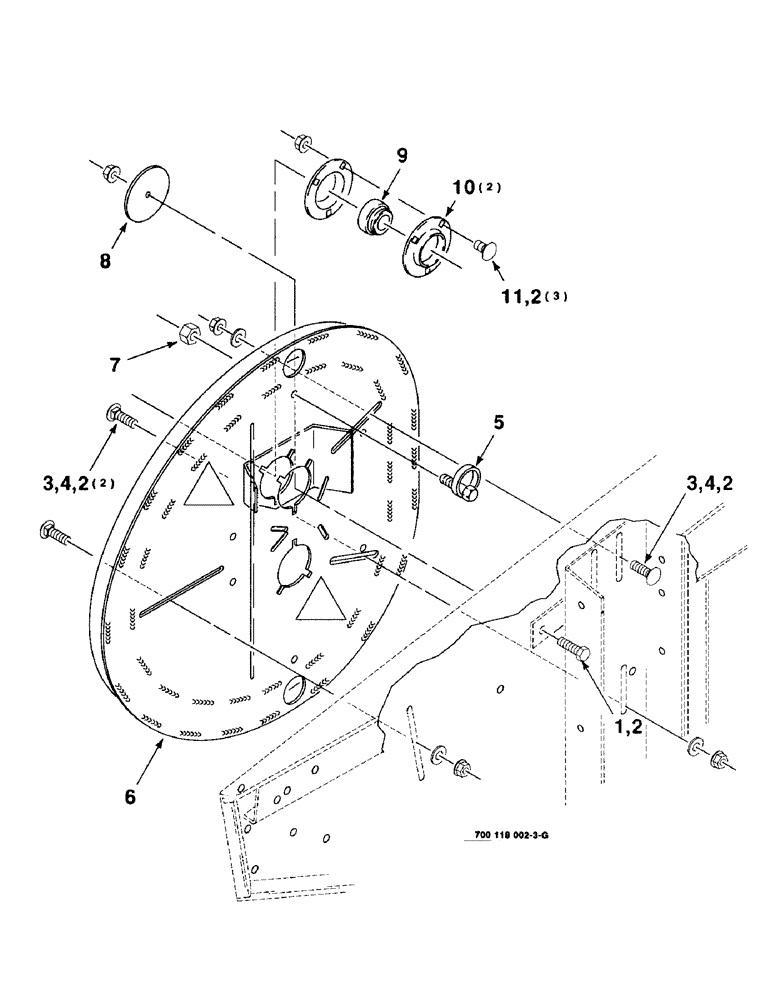

Запчасти Case IH 8340 (6-02) - REEL CAM & MOUNTING ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

2

231-5146

FLANGE NUT,3/8"-16

7шт.

3

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

5

700118300

CAM

WA

1шт.

6

700118296

CAM

TRACK WA - cam

1шт.

7

230-4218

LOCK NUT,1/2"-13, GA

1/2-13 HCLN GR/B

1шт.

8

700118312

WASHER

1шт.

9

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING

1шт.

10

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE

2шт.

11

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.
