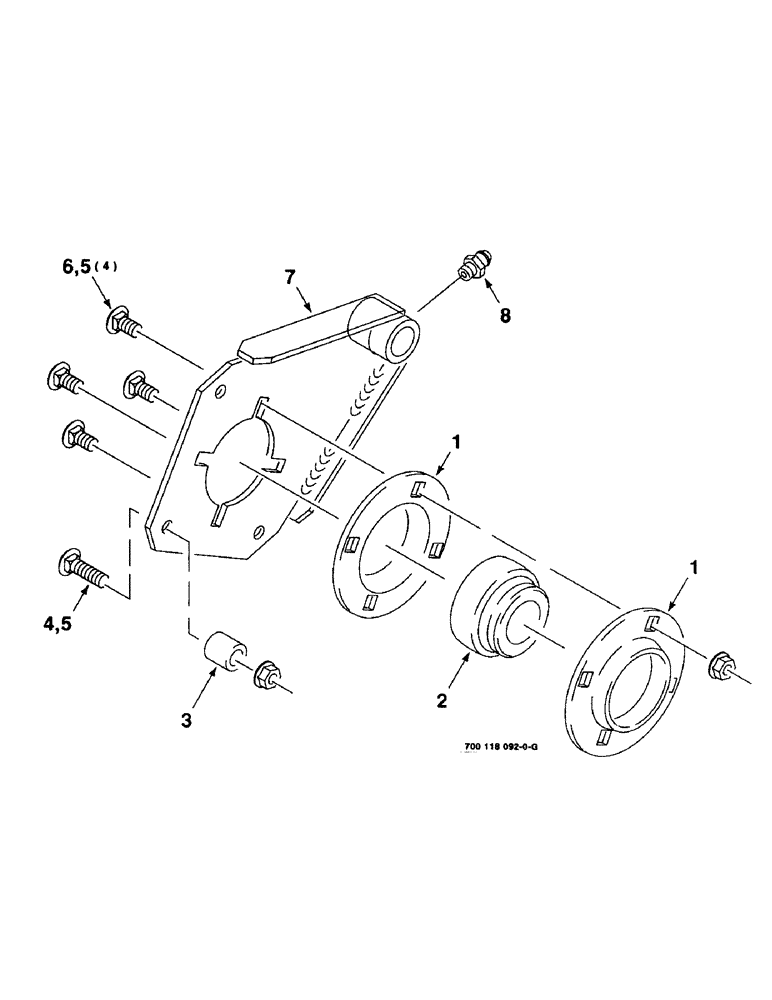

Запчасти Case IH 8340 (5-08) - HAY CONDITIONER PIVOT ARM ASSEMBLY, LEFT & RIGHT (58) - ATTACHMENTS/HEADERS

1

50575

FLANGE

2шт.

2

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

1шт.

3

700108790

SPACER

1шт.

4

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

1шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

7

700118093

ARM

WA

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
