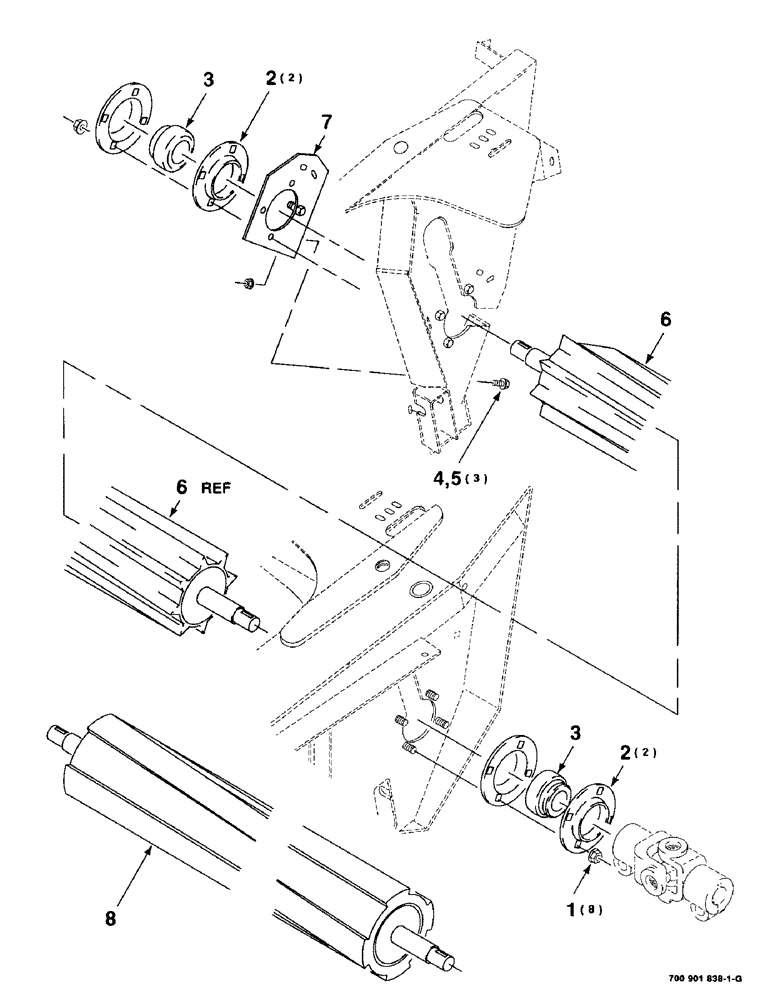

Запчасти Case IH 8340 (5-04) - HAY CONDITIONER ASSEMBLY, LOWER ROLL (58) - ATTACHMENTS/HEADERS

1

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

2

663562R1

FLANGE

4шт.

3

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical

2шт.

item#3, P/N 663559R91 DOES NOT INCLUDE THE COLLAR.

1шт.

FOR THE COLLAR, ORDER P/N 455112R11.

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

5

231-5146

FLANGE NUT,3/8"-16

3шт.

6

700115122

ROLLER

ROLL - conditioner (STEEL)

1шт.

7

700118213

COVER

WA

1шт.

8

700708525

ROLL

- conditioner (TICOR) (S.N. CFH0041501 Thru -0042123)

1шт.

700712170

ROLL

- conditioner (TICOR) (S.N. CFH0042124 And Later)

1шт.
