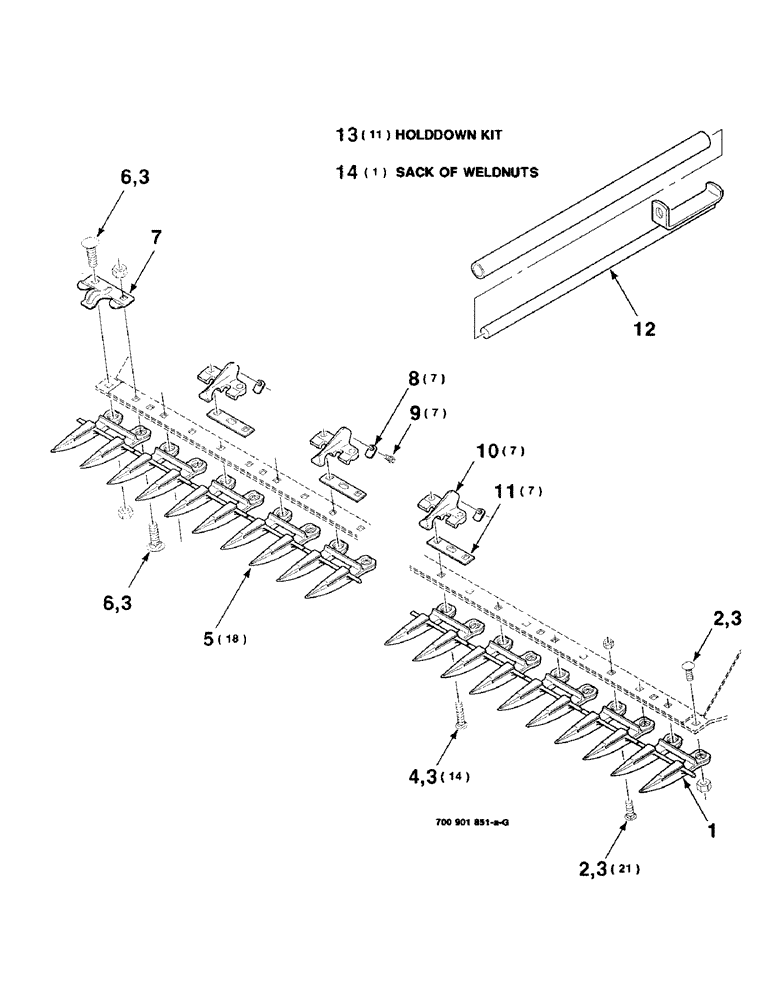

Запчасти Case IH 8340 (3-12) - HOLDDOWN & GUARD ASSEMBLY, RANGE GUARD (58) - ATTACHMENTS/HEADERS

1

700707464

GUARD

- double

1шт.

2

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

22шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

38шт.

4

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

14шт.

5

700707147

GUARD

- double

18шт.

6

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

2шт.

7

700111204

CLIP

HOLDDOWN (Packaged 25 per box)

1шт.

8

700703455

NUT

WELD NUT

7шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

10

700109726

HOLDER

HOLDDOWN

7шт.

11

700111956

PLATE

SHIM

7шт.

12

6135081

GUARD

STRAIGHTENER TOOL

1шт.

13

700109725

KNIFE CLIP

HOLDDOWN WN KIT - with hardware (Includes Items 3, 4, 8, 9 and 10)

11шт.

14

700107019

KIT

SACK OF WELDNUTS

1шт.
