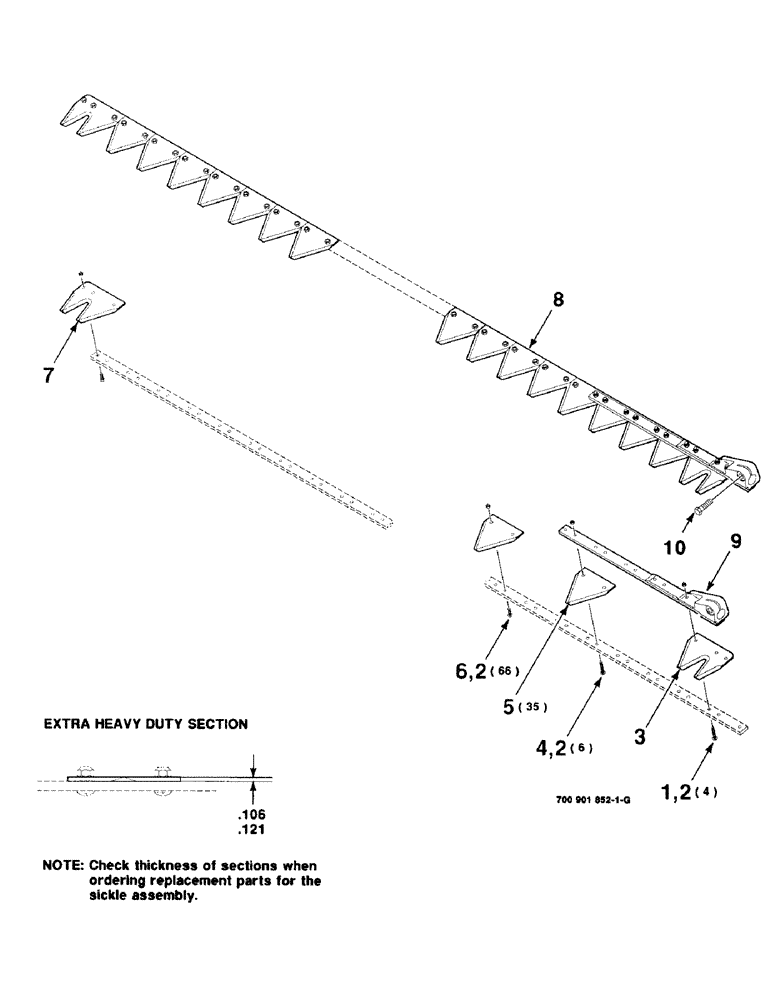

Запчасти Case IH 8340 (3-10) - SICKLE ASSEMBLY, BOLTED, EXTRA HD (58) - ATTACHMENTS/HEADERS

1

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Includes Item 2) (Box of 25 Bolts and Locknuts)

4шт.

2

700705521

RIVET

#12-24 LOCKNUT

76шт.

3

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

4

700709663

BOLT AND NUT

#12-24 X 7/8 BOLT (Includes Item 2) (Box of Bolts and Locknuts)

6шт.

5

700705300

KNIFE SECTION

SECTION - top serrated, heavy duty .092 thick (Packaged 25 per Box)

35шт.

NLS

NO LONGER SERVICED

SECTION - sickle, smooth (Packaged 25 per Box)

35шт.

6

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Includes Item 2) (Box of 50 Bolts and Locknuts)

66шт.

7

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

8

700118673

KNIFE ASSY

SICKLE ASSEMBLY COMPLETE (Extra Heavy Duty - top serrated sickle)

1шт.

700118341

KNIFE ASSY

SICKLE ASSEMBLY COMPLETE (Heavy Duty - smooth sickle)

1шт.

9

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.
