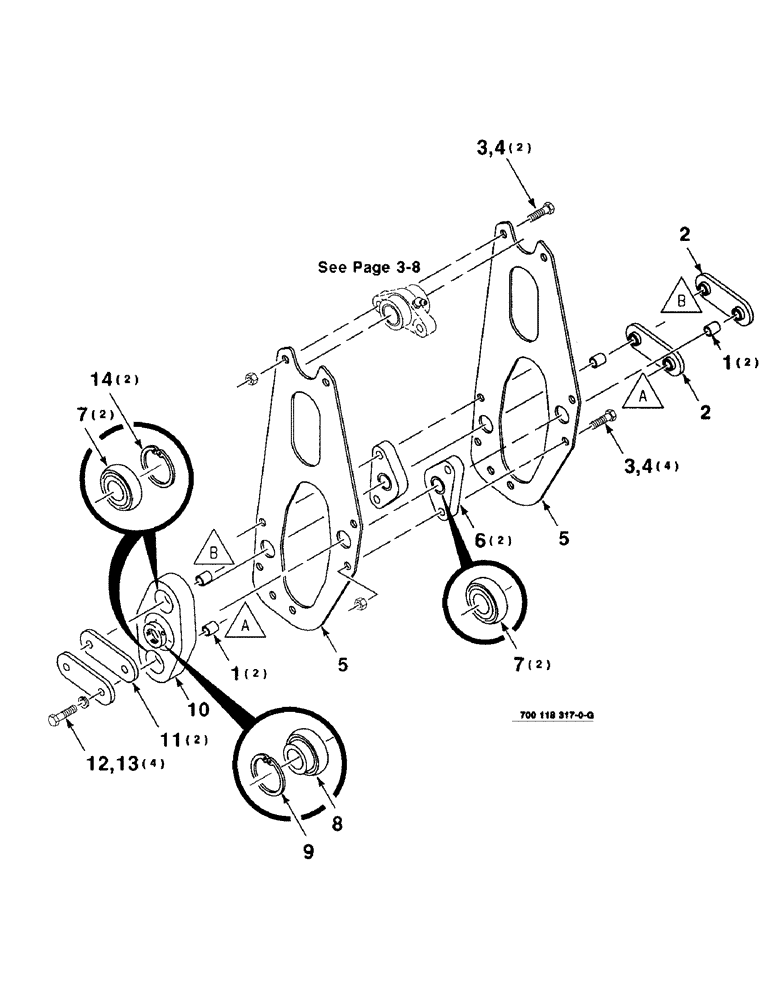

Запчасти Case IH 8340 (3-04) - SWAYBAR ASSEMBLY, SICKLE (58) - ATTACHMENTS/HEADERS

1

6583140

BUSHING,12.73mm ID x 16.94mm OD x 19.84mm L

4шт.

2

6582621

LINK

2шт.

3

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

1/2-20 X 1-3/4 C

6шт.

4

329-118

NUT,1/2"-20, G8

6шт.

5

700109338

SUPPORT

PLATE - sickle

2шт.

6

700118322

BEARING ASSY

BEARING ASSEMBLY (Includes Items 7)

2шт.

7

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

4шт.

8

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

Collar Not Included, Order 87431215

1шт.

9

740415

RING, SNAP

RING - retainer

1шт.

10

700118318

PLATE

ASSEMBLY (Includes Items 7, 8, 9 & 14)

1шт.

11

700109713

LINK

2шт.

12

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.
