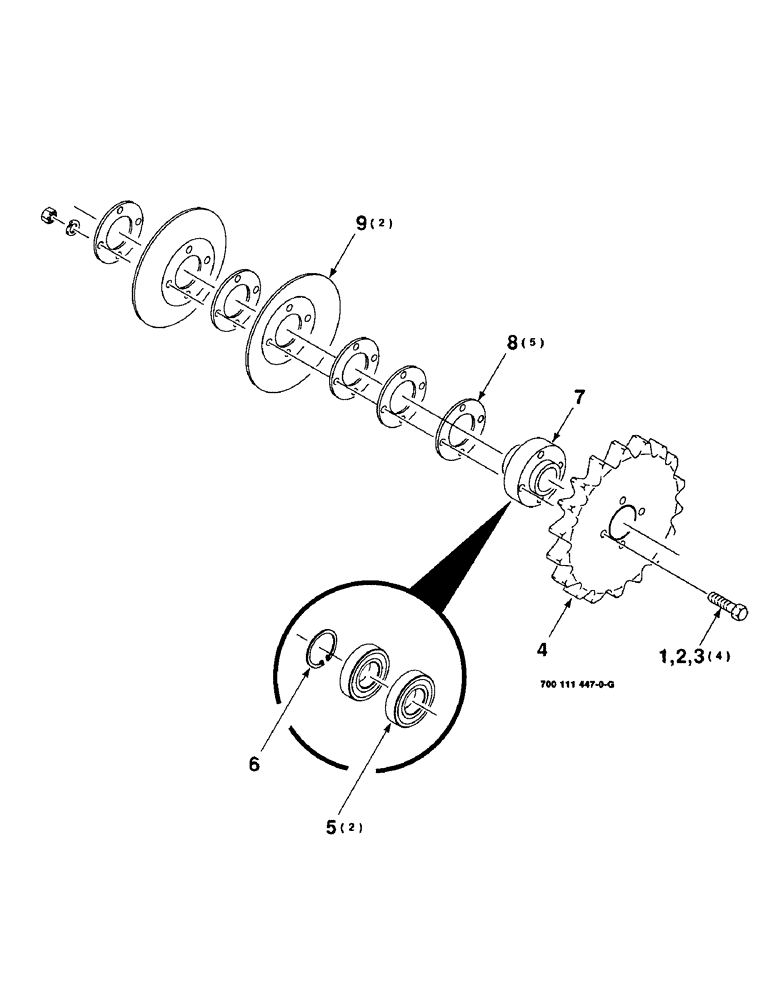

Запчасти Case IH 8340 (2-42) - REEL, VARI-DRIVE SHEAVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

4шт.

2

425-106

NUT,3/8"-16, Cl 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

700111451

SPROCKET

1шт.

5

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

- cylindrical

2шт.

6

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

1шт.

7

700111448

HUB

ASSEMBLY (Includes items 5 & 6)

1шт.

8

1661923

SHIM

SPACER - shim

5шт.

9

338244

SHEAVE

- half

2шт.
