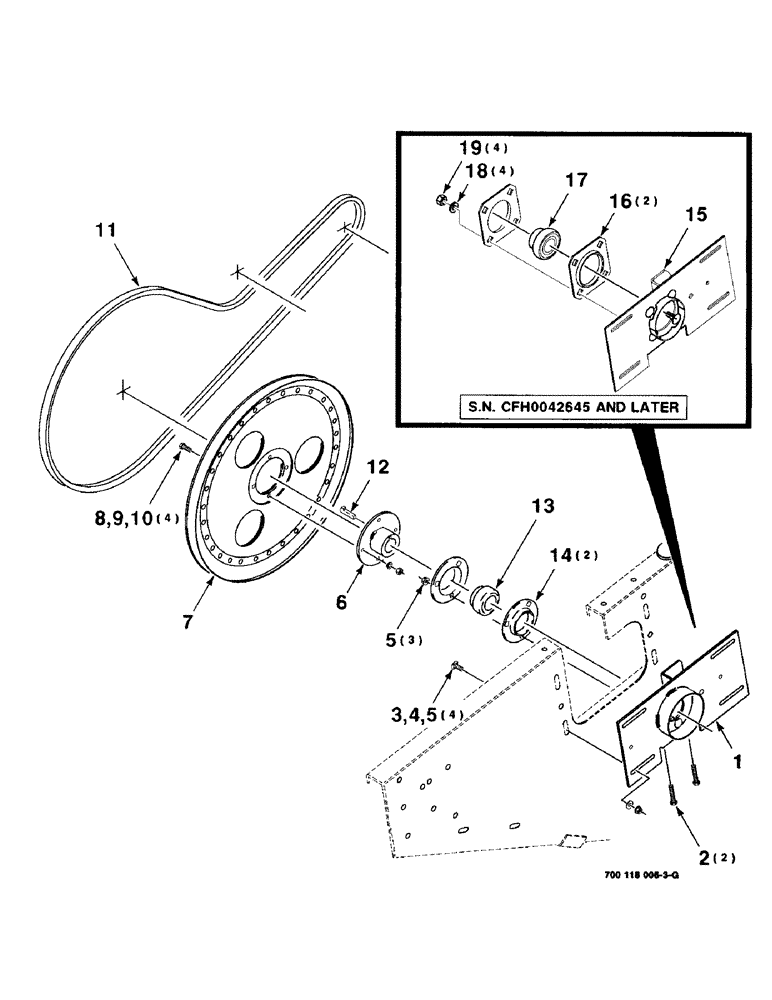

Запчасти Case IH 8340 (2-36) - REEL DRIVE & MOUNTING ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700118076

SUPPORT

WA - reel, right (S.N. CFH0041501 thru CFH0042644)

1шт.

2

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

700111440

HUB

1шт.

7

51200248

SHEAVE

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

856401

V-BELT,0.88" W x 109.00" L

1шт.

12

Q3932

KEY,Gib, 5/16" Sq x 2"

1шт.

13

713198

BALL BEARING

BEARING

1шт.

14

T27207

FLANGED BEARING

FLANGE

2шт.

15

700130629

SUPPORT

WA - reel, right

1шт.

16

1307583C1

FLANGED BEARING

2шт.

17

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING

1шт.

18

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.
