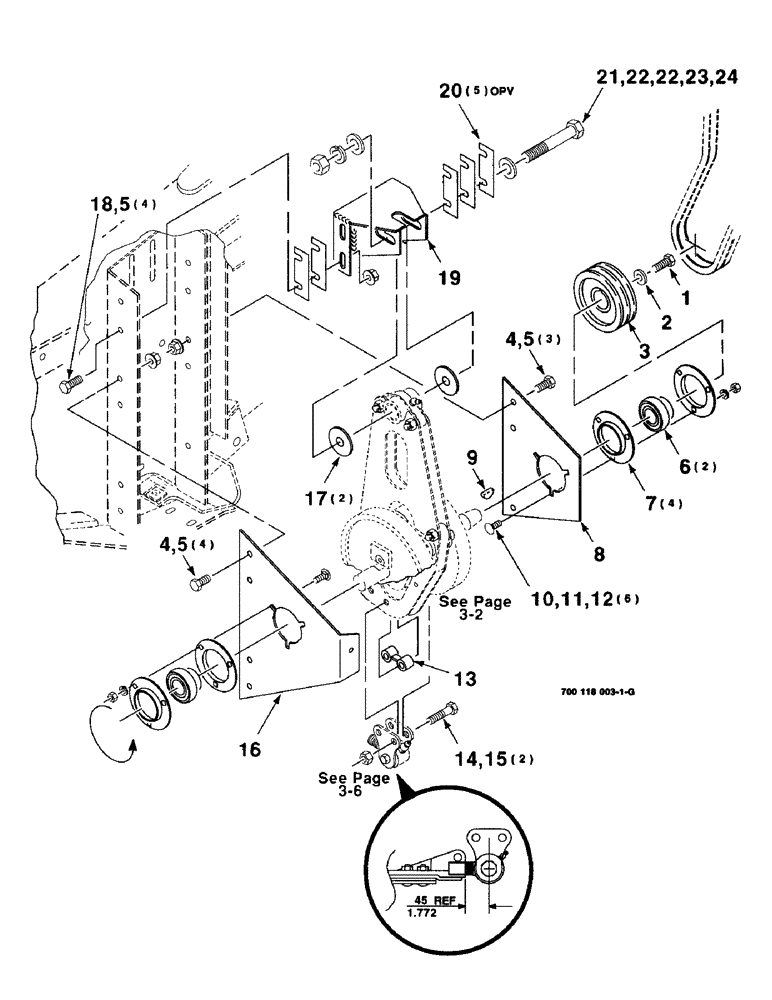

Запчасти Case IH 8340 (2-34) - SICKLE DRIVE & SWAYBAR ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2-20 X 1-1/4 C

1шт.

2

6181994

WASHER

1шт.

3

700118038

SHEAVE

1шт.

4

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

7шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

11шт.

6

611583R91

BALL BEARING

BEARING

2шт.

7

T27207

FLANGED BEARING

FLANGE

4шт.

8

700118340

MOUNTING PARTS

MOUNTING - rear, sickle drive

1шт.

9

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

13

700118333

SPACER

WA

1шт.

14

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

2шт.

15

329-118

NUT,1/2"-20, G8

2шт.

16

700118339

MOUNTING PARTS

SUPPORT - front, sickle drive

1шт.

17

700118337

WASHER

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

19

700118325

MOUNTING PARTS

MOUNTING WA - swaybar

1шт.

20

700118338

SHIM

5шт.

21

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4-10 X 4-1/2 C

1шт.

22

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

23

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

24

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.
