(2-30) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE

Запчасти Case IH 8340 (2-30) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

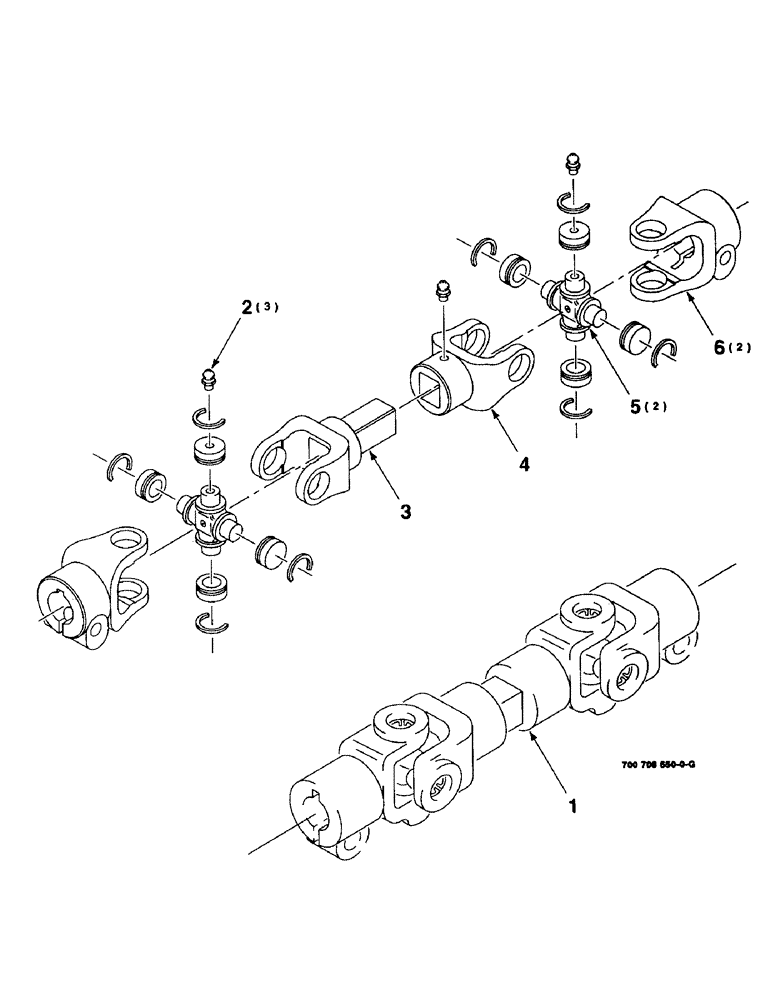

Схема запчастей Case IH 8340 - (2-30) - UPPER JACKSHAFT U-JOINT ASSEMBLY, 700708650 U-JOINT ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
1
5
2
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708650

FLEXIBLE JOINT

U-JOINT ASSEMBLY COOMPLETE

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

3

700708948

FORK

YOKE AND SHAFT

1шт.

4

700708949

FORK

YOKE - slip

1шт.

5

700711843

FLEXIBLE JOINT

KIT - cross and bearing

2шт.

6

757716

CLAMP

YOKE - clamp

2шт.
