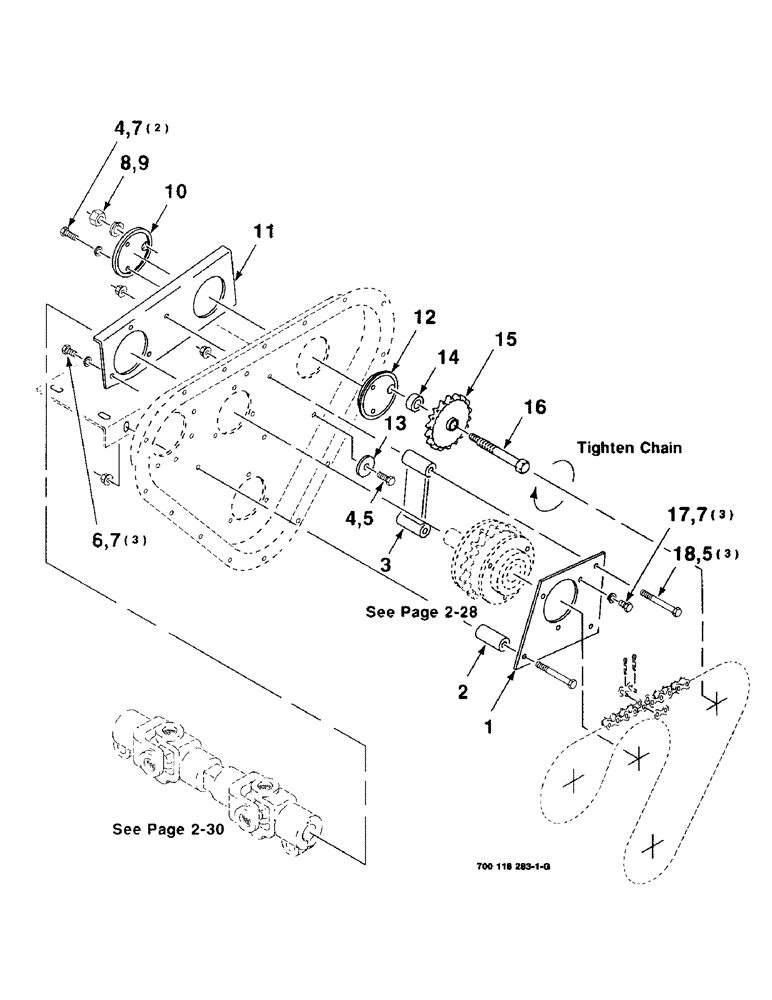

Запчасти Case IH 8340 (2-24) - CHAIN CASE ASSEMBLY, TIGHTENER (58) - ATTACHMENTS/HEADERS

1

700118292

SUPPORT

- jackshaft

1шт.

2

700118290

SPACER

1шт.

3

700118289

SUPPORT

WA - jackshaft

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

7

492-11038

LOCK WASHER,3/8"

8шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

10

700110612

COVER

- cam

1шт.

11

700118298

REINFORCEMENT

PLATE - reinforcement

1шт.

12

700110613

CAM

1шт.

13

411579

WASHER

1шт.

14

A162058

SPACER

1шт.

15

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler

1шт.

16

700118295

SCREW

- special

1шт.

17

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3шт.

18

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

3шт.
