(2-22) - GEARBOX ASSEMBLY, 700708515 GEARBOX ASSEMBLY COMPLETE

Запчасти Case IH 8340 (2-22) - GEARBOX ASSEMBLY, 700708515 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS

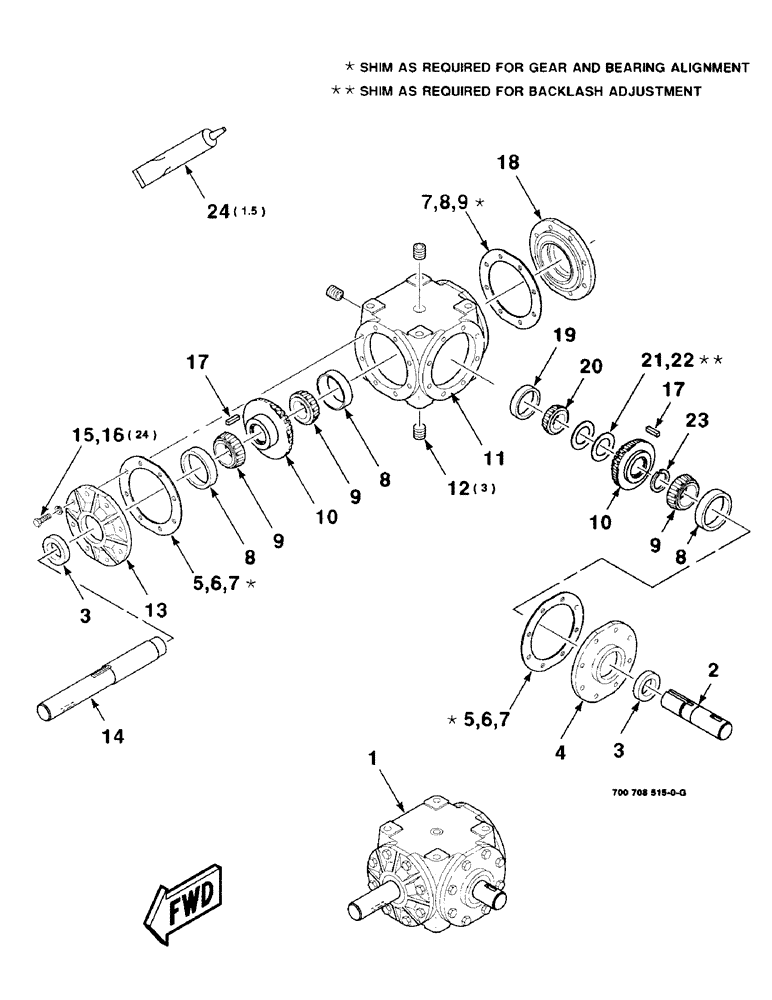

Схема запчастей Case IH 8340 - (2-22) - GEARBOX ASSEMBLY, 700708515 GEARBOX ASSEMBLY COMPLETE (58) - ATTACHMENTS/HEADERS
14
9
8
22
9
7
21
16
10
8
11
17
8
9
19
2
1
18
6
24
4
3
23
10
13
6
20
5
3
9
7
8
17
5
7
12
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708515

BOX

GEARBOX ASSEMBLY COMPLETE (Includes items 2 thru 23)

1шт.

2

700708978

SHAFT

- pinion

1шт.

3

76961C1

OIL SEAL

2шт.

4

700708979

CAP

- special

1шт.

5

1702232

GASKET

- aluminum (.003)

2шт.

6

1702224

GASKET

- aluminum (.005)

2шт.

7

1702216

GASKET

- aluminum (.015)

2шт.

8

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

9

T20939

ROLLER BEARING,1.25" ID x 0.771"

BEARING - cone

3шт.

10

700711871

GEAR SET

GEAR (MATCHED SET OF 2 GEARS)

2шт.

11

700100292

HOUSING

1шт.

12

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2-13 NPT PIPE PLUG

3шт.

13

757120

CAP

1шт.

14

700708980

SHAFT

SHIFT - thru

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

17

753574

KEY

2шт.

18

757054

CAP

- blank

1шт.

19

651817R1

BEARING CUP

CUP - bearing

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone

1шт.

21

753426

SHIM

(.005)

1шт.

22

753434

SHIM

(.010)

1шт.

23

757229

RING, SNAP

RING - retainer

1шт.

24

7020134

GEAR OIL (1.5 LBS)

1шт.
