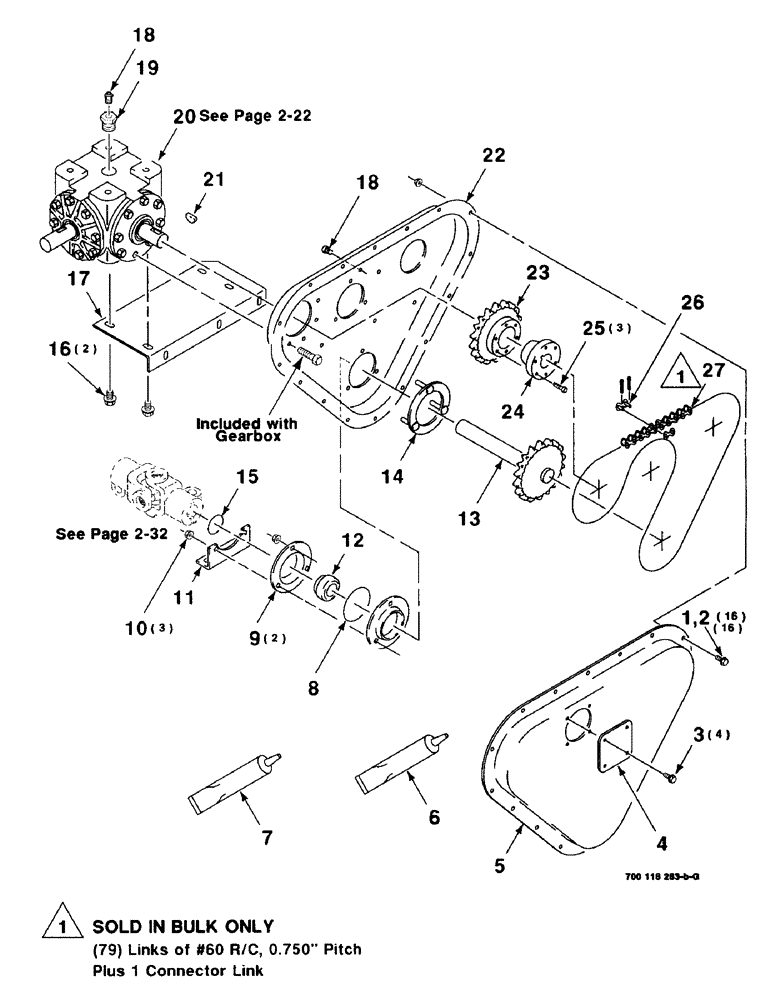

Запчасти Case IH 8340 (2-20) - CHAIN CASE & GEARBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

16шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

16шт.

3

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

4шт.

4

700111572

COVER

1шт.

5

700118041

PLATE

- outer

1шт.

6

700707823

SEALANT

1шт.

7

700701079

LUBRICANT

- gearbox

1шт.

8

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

9

T27207

FLANGED BEARING

FLANGE

2шт.

10

231-5146

FLANGE NUT,3/8"-16

3шт.

11

700118293

SUPPORT

- shield

1шт.

12

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

when ordering also order locking collar 455104R11

1шт.

13

700118308

SPROCKET ASSY.

SPROCKET WA

1шт.

14

700118294

FLANGE

WA

1шт.

15

238-5025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1шт.

16

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2-13 X 3/4 HFSS

2шт.

17

700118288

SUPPORT

- chainbox

1шт.

18

152127H1

BREATHER,1/8"-27, Short

PLUG - vent

2шт.

19

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/2-14 NPTF X 1/8 REDUCER - bushing

1шт.

20

700708515

BOX

GEARBOX

1шт.

21

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

1шт.

22

700118040

PLATE

- inner

1шт.

23

700708703

SPROCKET ASSY.

SPROCKET

1шт.

24

7747280

ASSEMBLY

BUSHING - taper (Includes Item 24)

1шт.

25

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

26

241-1316

LINK,19.05mm Pitch

LINK - connector, r/c #60

1шт.

27

611362R91

CHAIN (AG)

CHAIN - roller #60 (10 FOOT BULK)

1шт.
