(2-18) - GEARBOX & CHAIN CASE MOUNTING ASSEMBLY

Запчасти Case IH 8340 (2-18) - GEARBOX & CHAIN CASE MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS

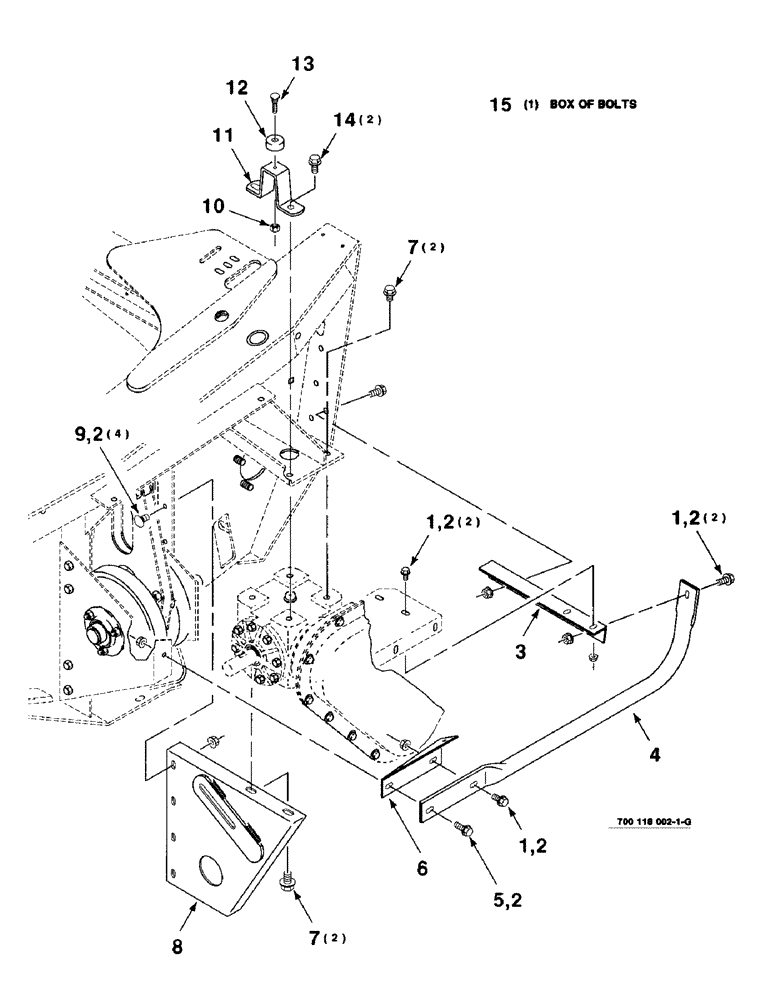

Схема запчастей Case IH 8340 - (2-18) - GEARBOX & CHAIN CASE MOUNTING ASSEMBLY (58) - ATTACHMENTS/HEADERS
1
1
3
11
12
14
10
7
2
2
9
6
7
13
5
15
4
2
2
2
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

5шт.

2

231-5146

FLANGE NUT,3/8"-16

10шт.

3

700118305

BRACE

1шт.

4

700118306

GUARD

1шт.

5

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

6

700118313

SUPPORT

- shield, left

1шт.

7

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2-13 X 3/4 HFSS

4шт.

8

700118302

SUPPORT

WA

1шт.

9

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

10

700705521

RIVET

#12-24 LOCKNUT

1шт.

11

700118311

SUPPORT

- stop

1шт.

12

700708648

BUMPER

1шт.

13

700705519

RIVET

#12-24 X 1 BOLT

1шт.

14

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2-13 X 1 HFSS

2шт.

15

700705297

KIT

BOX OF BOLTS

1шт.
