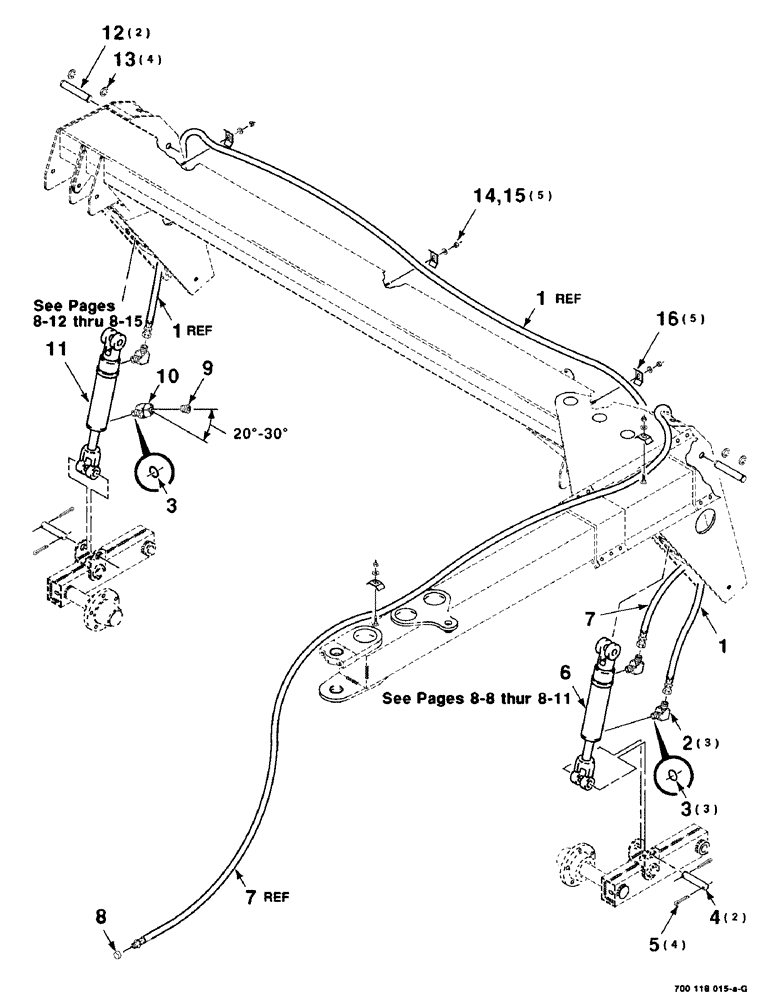

Запчасти Case IH 8340 (8-06) - WHEEL ASSEMBLY (44) - WHEELS

1

700708679

HYDRAULIC HOSE,9.65 mm ID x 3650.00 mm, SAE 100R1

9.65 mm ID x 3650.00 mm, SAE 100R1

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 DEGREE ELBOW (Includes Item 3)

3шт.

3

738468

O-RING

4шт.

4

700109606

PIN

- cylinder, lower

2шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

6

700707694

CYLINDER

- hydraulic (S.N. CFH0041501 Thru -0041987)

1шт.

700712015

CYLINDER

HYDRAULIC

1шт.

7

700708678

HYDRAULIC HOSE,9.65 mm ID x 5700.00 mm, SAE 100R1

9.65 mm ID x 5700.00 mm, SAE 100R1

1шт.

8

793976

CAP

- pipe

1шт.

9

700704639

PLUG

- vented

1шт.

10

7791916

ELBOW

90 ELBOW (Includes Item 3)

1шт.

11

700704570

HYDRAULIC CYLINDER

CYLINDER - hydraulic (S.N. CFH0041501 Thru -0041987)

1шт.

700712017

CYLINDER

HYDRAULIC (S.N. CFH0041988 and Later)

1шт.

12

700118057

PIN

- cylinder, upper

2шт.

13

100-11100

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

4шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

15

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN GR/B

5шт.

16

6246995

CLAMP

CLIP

5шт.
