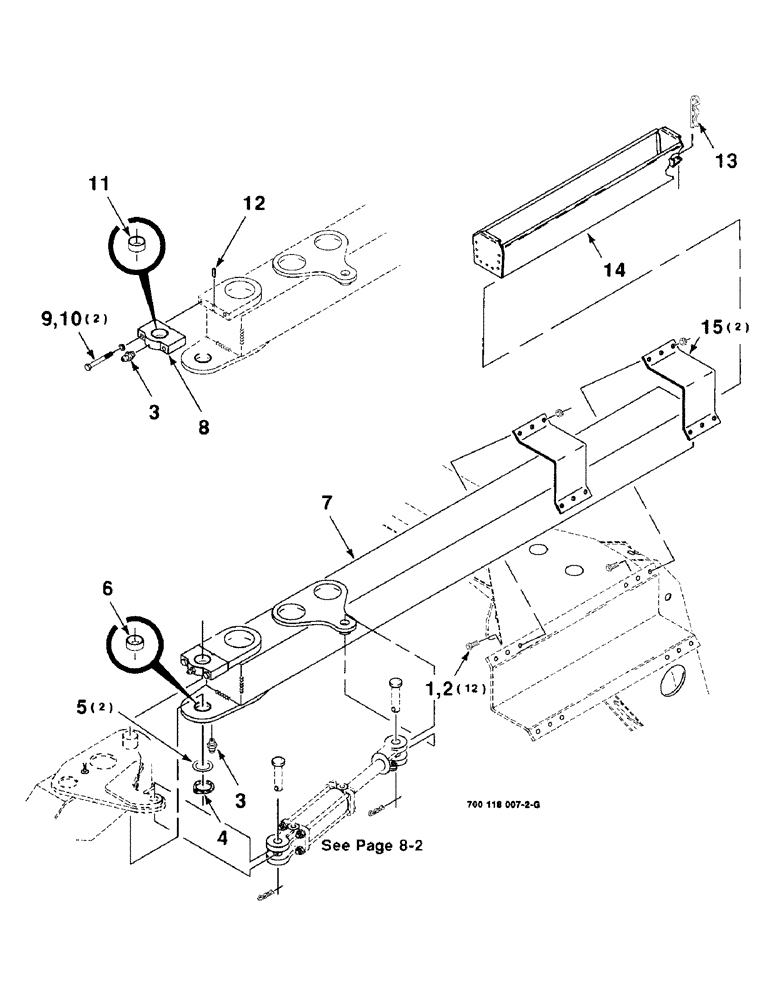

Запчасти Case IH 8340 (7-04) - BEAM ASSEMBLY, TONGUE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

700707694

CYLINDER

HYDRAULIC CYLINDER COMPLETE

4шт.

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

2

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

12шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

4

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

5

NLS

NO LONGER SERVICED

1-3/4 X 14 GAUGE NRMB

2шт.

6

700708680

BUSHING

BEARING - bronze

1шт.

7

700118373

BEAM

WA - side (Includes Item 6)

1шт.

8

700118666

LUG

(Includes Item 11)

1шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

700708579

BUSHING

BEARING - bronze

1шт.

12

1665454

STOP

- key

1шт.

13

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

14

700109615

BOX

WA - tool

1шт.

15

700118056

CLAMP

2шт.
