(8-14) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041988 & LATER

Запчасти Case IH 8340 (8-14) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041988 & LATER (35) - HYDRAULIC SYSTEMS

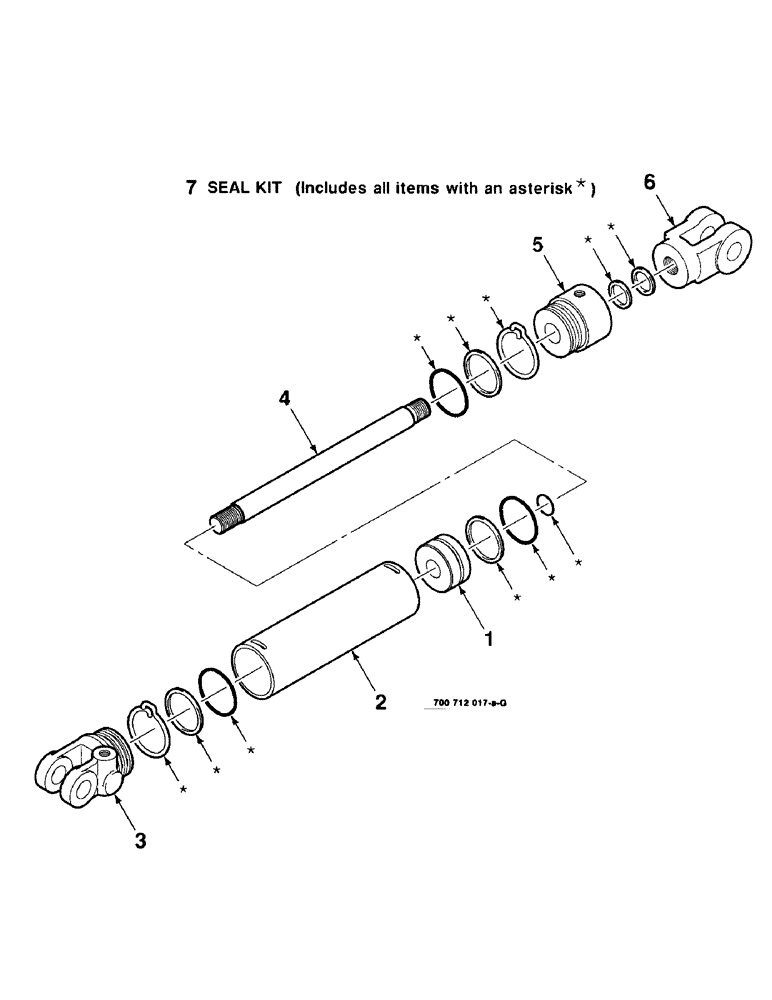

Схема запчастей Case IH 8340 - (8-14) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041988 & LATER (35) - HYDRAULIC SYSTEMS
4
7
6
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700712015

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT Includes: Ref. marked in artwith an astericks

1шт.

Выбрано товаров: 8
