(8-12) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041501 - CFH0041987

Запчасти Case IH 8340 (8-12) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041501 - CFH0041987 (35) - HYDRAULIC SYSTEMS

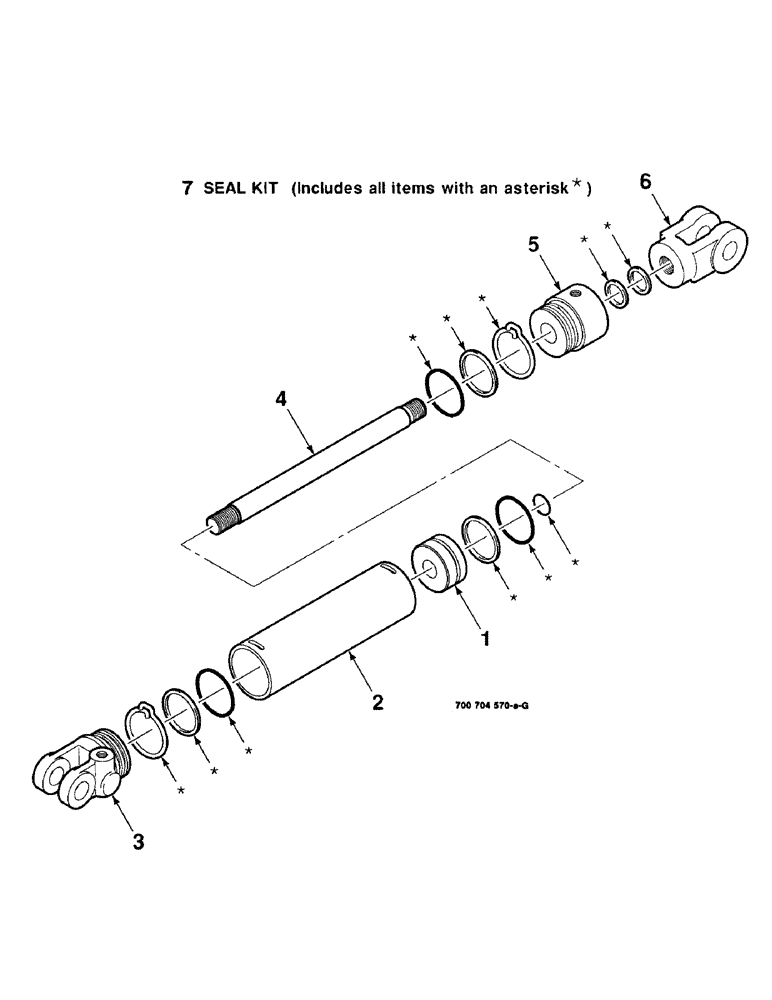

Схема запчастей Case IH 8340 - (8-12) - HYDRAULIC CYLINDER SLAVE, RIGHT, 2-1/2" DIAMETER X 8" STROKE, S/N CFH0041501 - CFH0041987 (35) - HYDRAULIC SYSTEMS
6
1
5
7
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700704570

HYDRAULIC CYLINDER

COMPLETE

1шт.

1

700704892

PISTON

- cylinder

1шт.

2

700710238

SLEEVE CYLINDER

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

700704891

CYLINDER END CAP

BEARING - cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT Includes: Ref. marked in art with and astericks

1шт.

Выбрано товаров: 8
