(8-04) - HYDRAULIC CYLINDER ASSEMBLY TONGUE, 3" BORE X 8" STROKE, 700708562 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH 8340 (8-04) - HYDRAULIC CYLINDER ASSEMBLY TONGUE, 3" BORE X 8" STROKE, 700708562 HYDRAULIC CYLINDER COMPLETE (35) - HYDRAULIC SYSTEMS

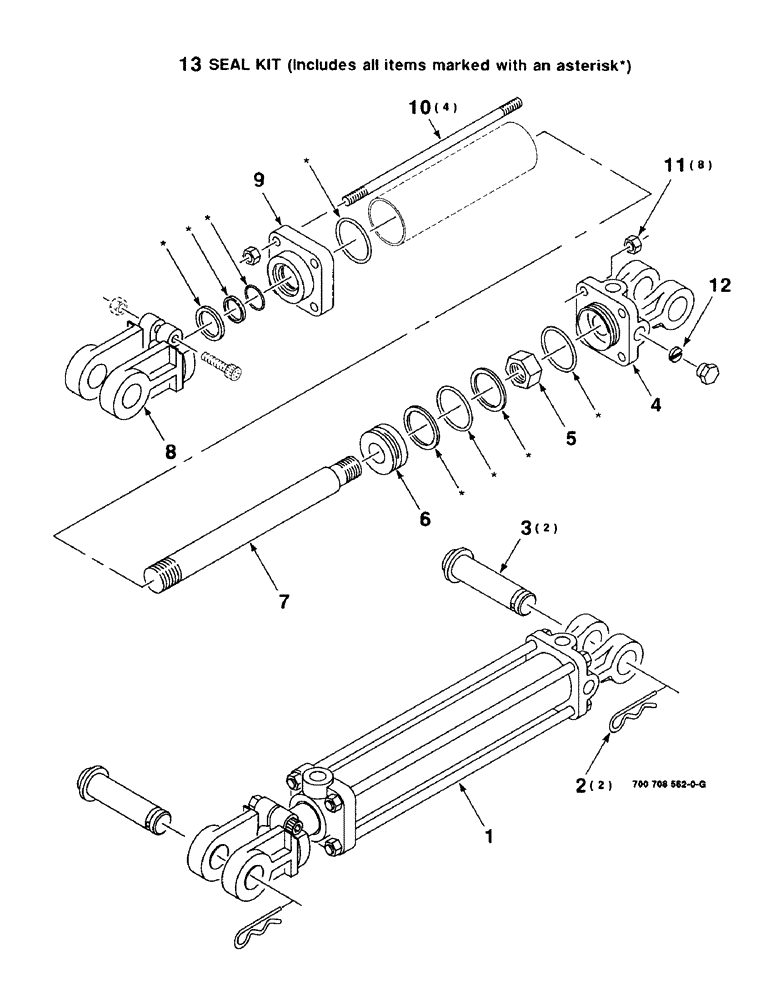

Схема запчастей Case IH 8340 - (8-04) - HYDRAULIC CYLINDER ASSEMBLY TONGUE, 3" BORE X 8" STROKE, 700708562 HYDRAULIC CYLINDER COMPLETE (35) - HYDRAULIC SYSTEMS
1
12
4
11
8
5
10
3
2
7
9
6
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700708562

CYLINDER

HYDRAULIC CYLINDER COMPLETE (Includes Items 2 and 3)

1шт.

2

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

3

811134C1

PIN

- clevis

2шт.

4

700708858

BASE

CLEVIS - cylinder base

1шт.

5

7036676

NUT

- piston

1шт.

6

7036734

PISTON

1шт.

7

7036718

ROD

- piston

1шт.

8

T55022

CLEVIS

1шт.

9

700708860

HEAD

- cylinder

1шт.

10

1256443C1

TIE-ROD

TIE - rod

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

12

700708857

ORIFICE

1шт.

13

7038649

SEAL KIT

O-RING AND SEAL REPAIR KIT Includes: Ref. marked in art with ands astericks

1шт.
