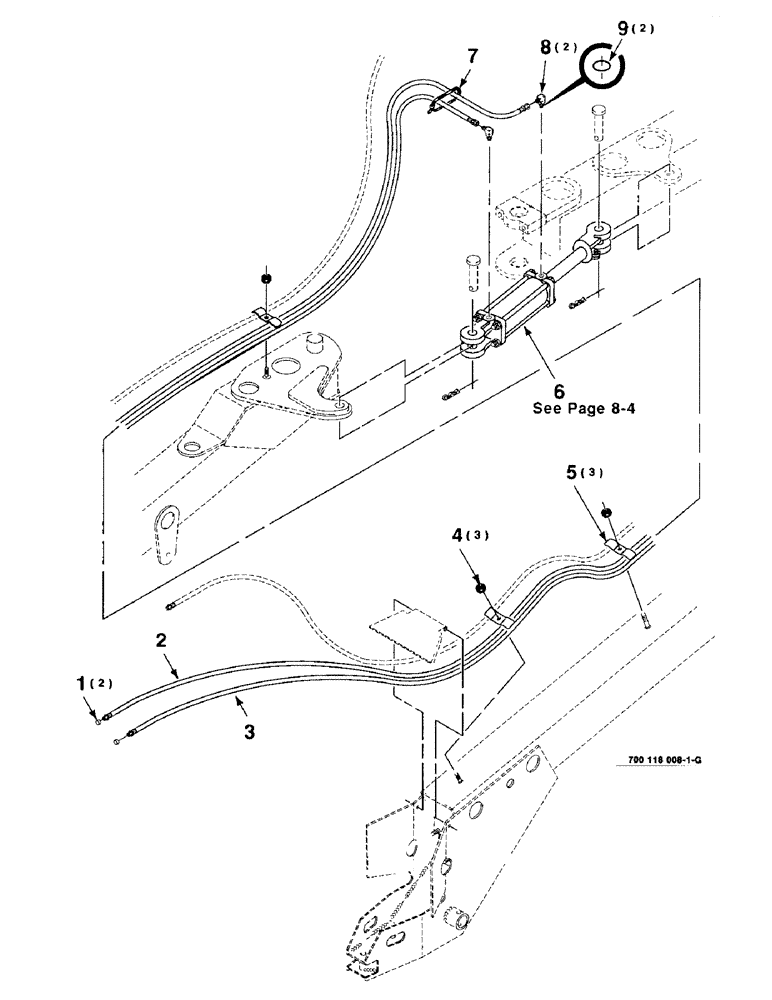

Запчасти Case IH 8340 (8-02) - HYDRAULIC TONGUE POSITIONING ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

793976

CAP

- pipe

2шт.

2

700708665

HOSE ASSY.

HOSE ASSEMBLY

1шт.

3

700708664

HOSE ASSY.

HOSE ASSEMBLY

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN GR/B

3шт.

5

451641

CLAMP

3шт.

6

700708562

CYLINDER

- hydraulic

1шт.

7

306132C1

CABLE TIE,14.5" L

TIE - nylon 14 in

1шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 DEGREE ELBOW (Includes Item 9)

2шт.

9

738468

O-RING

2шт.
