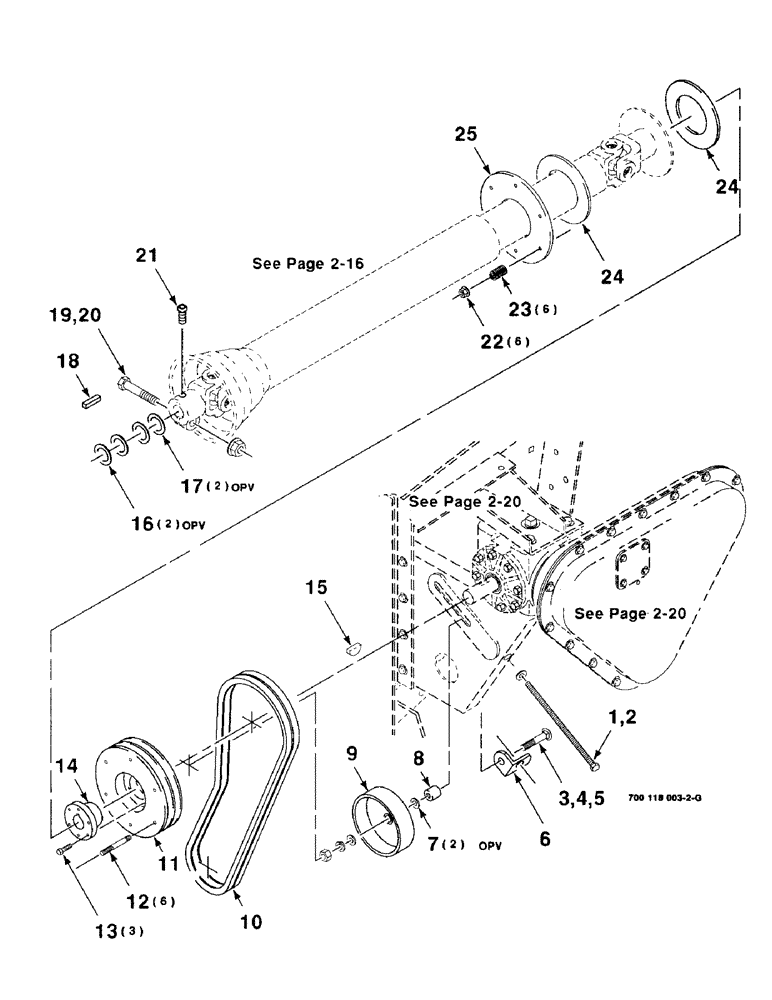

Запчасти Case IH 8340 (2-14) - DRIVE ASSEMBLY, INTERMEDIATE (31) - IMPLEMENT POWER TAKE OFF

1

7884992

HARDWARE

3/8-19 X 9-1/2 FTB

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

3

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

1шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

425-1010

NUT,5/8"-11, G5

1шт.

6

6582308

ANGLE

CLIP

1шт.

700127577

ANGLE

ASSEMBLY

1шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

8

6168835

SPACER

1шт.

9

853317

FRONT IDLER

IDLER

1шт.

10

700704407

SET OF BELTS,0.63" W x 51.58" L

V-Belt 0.63" W x 51.58" L

1шт.

11

700118039

SHEAVE

1шт.

12

700708682

STUD

6шт.

13

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

14

7747280

ASSEMBLY

BUSHING - taper lock

1шт.

15

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

1шт.

16

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

17

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

2шт.

18

61119

KEY

1/4 X 1/4 X 2 KEY

1шт.

19

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

20

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

21

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

5/16-18 X 1/2 CPSQHSS

1шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

23

58107

SPRING

6шт.

24

700706222

SETTING DIAL

DISC - clutch

2шт.

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - clutch

2шт.

25

392464

LARGE PLATE

PLATE

1шт.
