(2-12) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041988 AND LATER

Запчасти Case IH 8340 (2-12) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041988 AND LATER (31) - IMPLEMENT POWER TAKE OFF

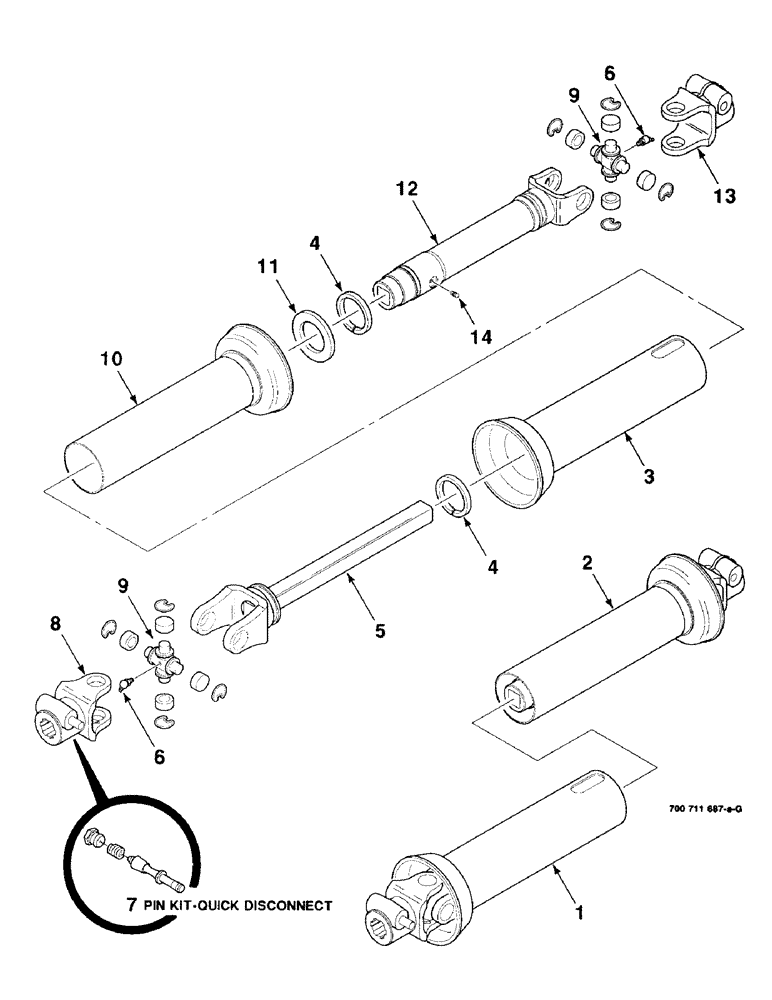

Схема запчастей Case IH 8340 - (2-12) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041988 AND LATER (31) - IMPLEMENT POWER TAKE OFF
2
9
8
6
1
4
9
14
11
13
5
6
10
4
12
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711691

PTO

TRACTOR HALF

1шт.

2

700711692

PTO

IMPLEMENT HALF

1шт.

3

700711674

SHIELD

OUTER - shield

1шт.

4

700711688

SHIELD

BEARING - nylon, shield

2шт.

5

700709720

YOKE

AND SHAFT

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

7

700708364

KIT

PIN KIT - quick disconnect

1шт.

8

568100R93

FORK

YOKE ASSEMBLY

1шт.

9

753772

KIT

JOURNAL REPAIR KIT

2шт.

10

700711675

SHIELD

- inner

1шт.

11

700711690

NYLON BEARING

BEARING - nylon

1шт.

12

700709719

YOKE

AND TUBE

1шт.

13

7813843

YOKE

CLAMP - yoke

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
