(2-10) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041572 THRU CFH0041987

Запчасти Case IH 8340 (2-10) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041572 THRU CFH0041987 (31) - IMPLEMENT POWER TAKE OFF

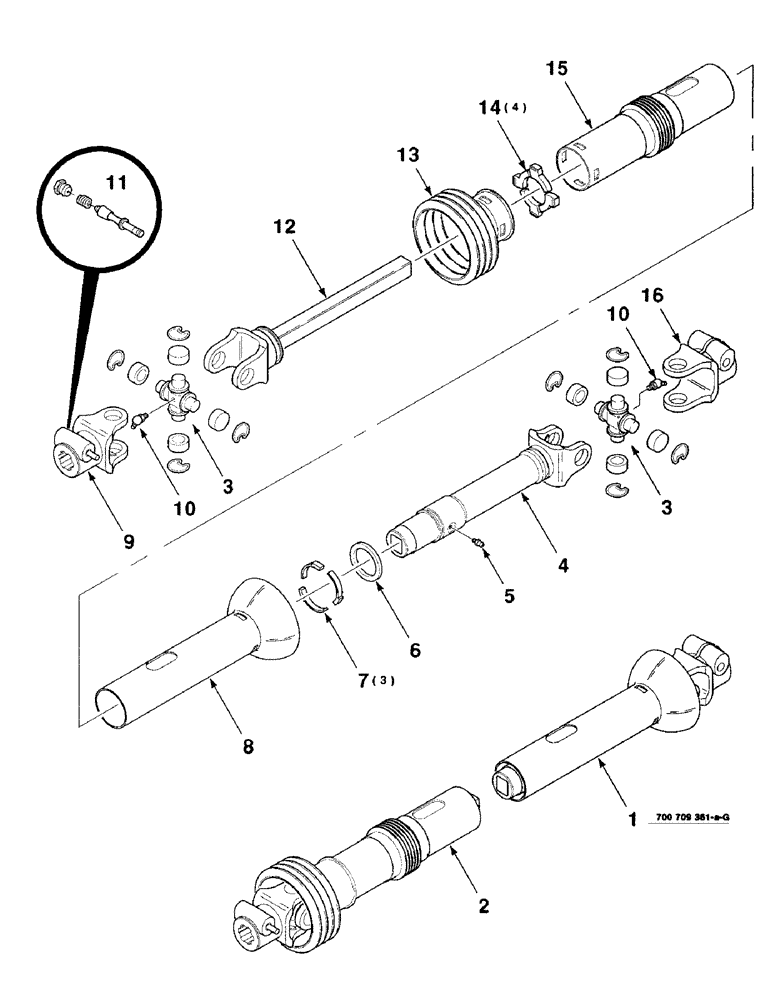

Схема запчастей Case IH 8340 - (2-10) - U-JOINT ASSEMBLY, NEAPCO, S/N CFH0041572 THRU CFH0041987 (31) - IMPLEMENT POWER TAKE OFF
11
5
12
6
15
10
16
3
14
9
7
8
2
4
3
10
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700709713

REAR PTO ASSY

U-JOINT ASSEMBLY - implement half

1шт.

2

700709714

FRONT PTO ASSY

U-JOINT ASSEMBLY - tractor half

1шт.

3

753772

KIT

JOURNAL REPAIR KIT

2шт.

4

700709719

YOKE

AND TUBE WA

1шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

6

700709718

NYLON BEARING

BEARING - nylon, center

1шт.

7

700706872

CLIP

BEARING - nylon, shield

3шт.

8

700709715

SHIELD

- inner

1шт.

9

568100R93

FORK

YOKE - tractor, 540 RPM

1шт.

10

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 x 65 DEGREE ZERK

2шт.

11

700708364

KIT

QUICK DISCONNECT PIN KIT

1шт.

12

700709720

YOKE

AND SHAFT WA

1шт.

13

700710581

BELL HOUSING

SHIELD - bell, outer

1шт.

14

700706164

BEARING COVER

BEARING - nylon, shield

4шт.

15

700709716

SHIELD

- outer

1шт.

16

7813843

YOKE

YOKE - clamp

1шт.
