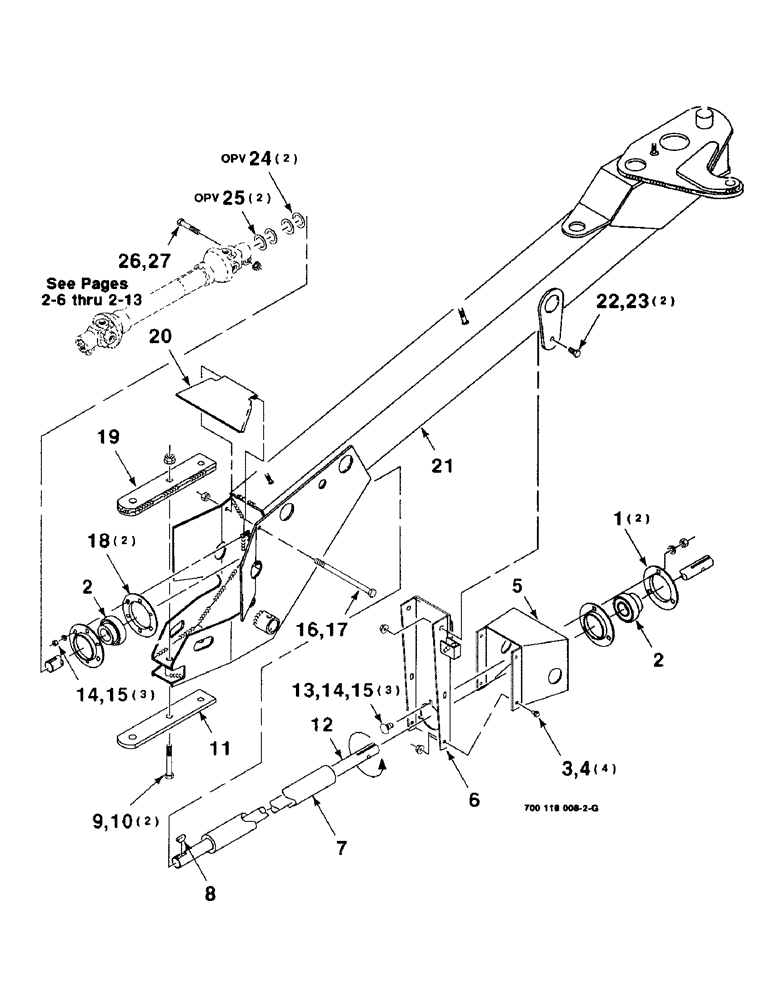

Запчасти Case IH 8340 (2-04) - PRIMARY DRIVE ASSEMBLY, S.N. CFH0041682 AND LATER (31) - IMPLEMENT POWER TAKE OFF

1

T27207

FLANGED BEARING

FLANGE

2шт.

2

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

when ordering also order locking collar 455104R11

2шт.

3

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

5

700118270

SHIELD

1шт.

6

700122462

SUPPORT

WA - bearing

1шт.

7

700118267

TUBE,1030 mm Length

- shield

1шт.

8

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

9

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

10

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

11

700118272

CLEVIS

- hitch

1шт.

12

700118269

SHAFT

- drive

1шт.

13

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

14

492-11038

LOCK WASHER,3/8"

6шт.

15

425-106

NUT,3/8"-16, Cl 5

6шт.

16

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

1шт.

17

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN GR/G

1шт.

18

712612

FLANGE

2шт.

19

700118271

CLEVIS

WA - hitch

1шт.

20

700109375

SHIELD

1шт.

21

700122447

TOW BAR

TONGUE WA

1шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

23

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

2шт.

25

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

26

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.
