(9-04) - SKID SHOE, CENTER, KIT, MODEL 8330 ONLY, HK10149 COMPLETE,TO BE ORDERED THRU WHOLEGOODS ONLY

Запчасти Case IH 8330 (9-04) - SKID SHOE, CENTER, KIT, MODEL 8330 ONLY, HK10149 COMPLETE,TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

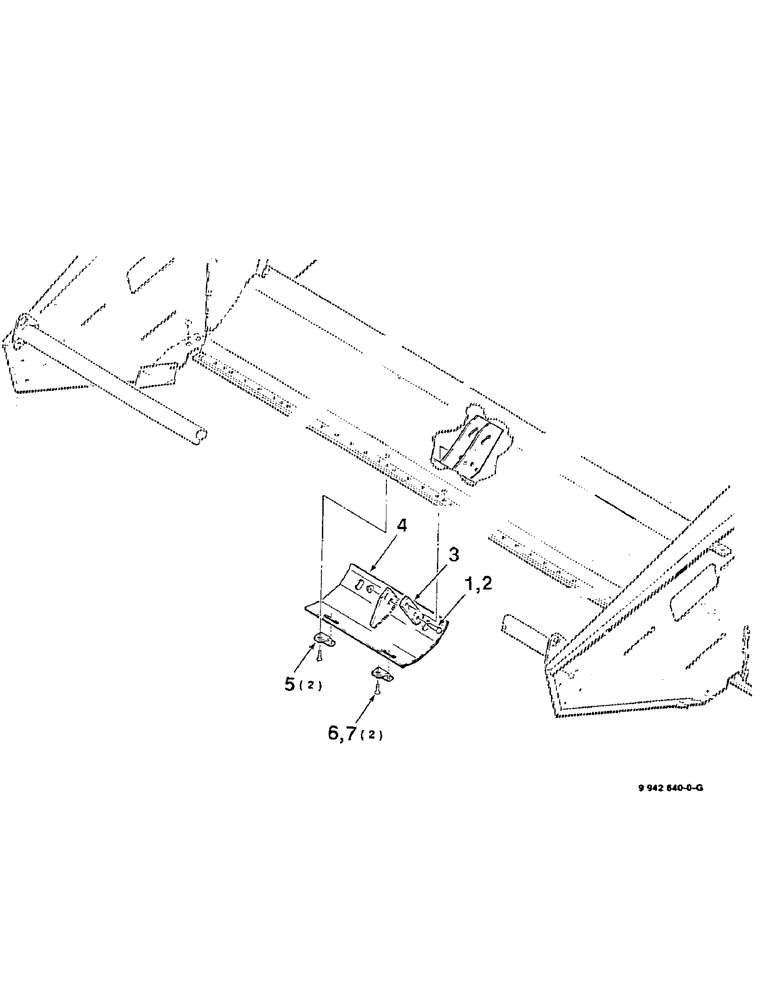

Схема запчастей Case IH 8330 - (9-04) - SKID SHOE, CENTER, KIT, MODEL 8330 ONLY, HK10149 COMPLETE,TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS
6
4
2
3
7
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK10149

SHOE

CENTER SKID SHOE KIT COMPLETE

1шт.

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

3

453670

LINK

1шт.

4

6580567

SHOE

- skid

1шт.

700122892

SHOE

- skid

1шт.

5

6453799

CLIP

- shoe

2шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

7

425-107

NUT,7/16"-14, G5

7/16-14 H

2шт.
