Запчасти Case IH 8330 (7-14) - WINDROW FORMING SHIELDS, MODEL 8330 (09) - CHASSIS

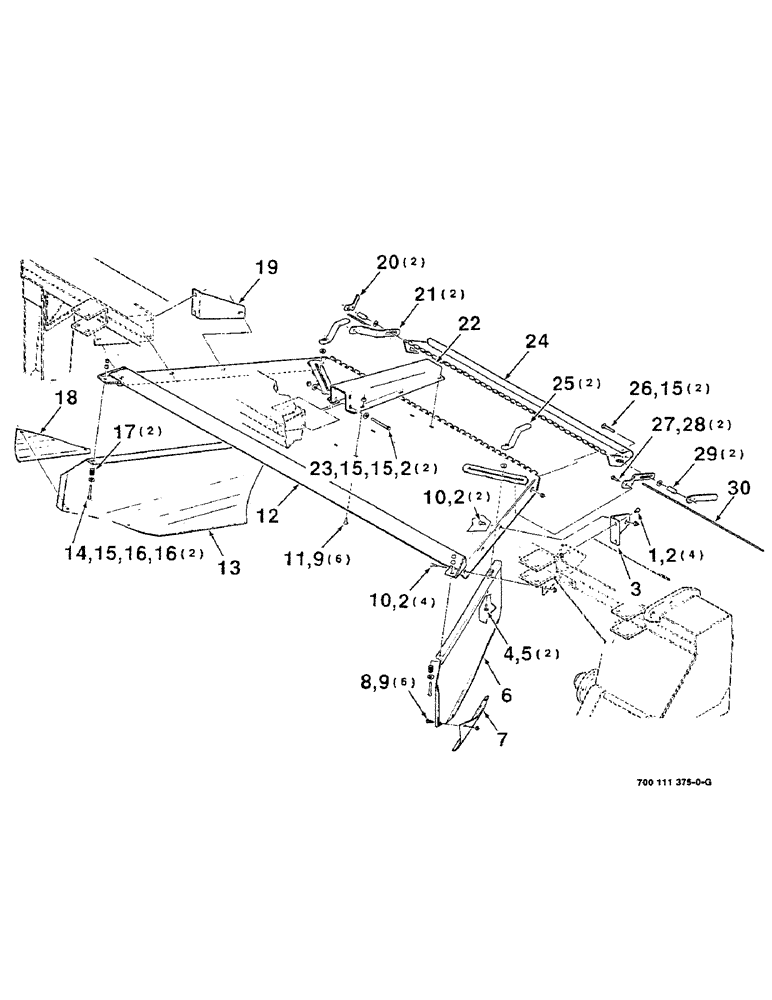

Схема запчастей Case IH 8330 - (7-14) - WINDROW FORMING SHIELDS, MODEL 8330 (09) - CHASSIS
25
16
15
15
3
4
7
24
12
23
26
2
22
6
29
10
20
13
30
2
15
5
18
15
17
9
27
10
11
1
8
14
21
2
2
19
9
28
16

Артикул

Название

Примечание

Количество

1

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

2

231-5146

FLANGE NUT,3/8"-16

12шт.

3

700111408

GUSSET

- shield, left

1шт.

4

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

6

700111391

SHIELD

- forming, left

1шт.

7

700111389

EXTENSION

- shield, left

1шт.

8

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

10

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

11

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

6шт.

12

700111376

SHIELD

- top

1шт.

13

700111392

SHIELD

- forming, right

1шт.

14

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

58644

SPRING

- compression

2шт.

18

700111396

EXTENSION

- shield, right

1шт.

19

700111409

GUSSET

- shield, right

1шт.

20

6456750

HANDLE

ASSEMBLY

2шт.

21

700111384

STRAP

- adjustment

2шт.

22

700111386

SUPPORT

- shield

1шт.

23

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

2шт.

24

700111381

DEFLECTOR

- rear

1шт.

25

6457469

LEVER ASSY.

LEVER NUT

2шт.

26

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 RHSNB

2шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

29

950523R1

SPACER,3/8" Pipe x 1 1/2"

2шт.

30

6674915

PIN

- hinge

1шт.

Выбрано товаров: 30
