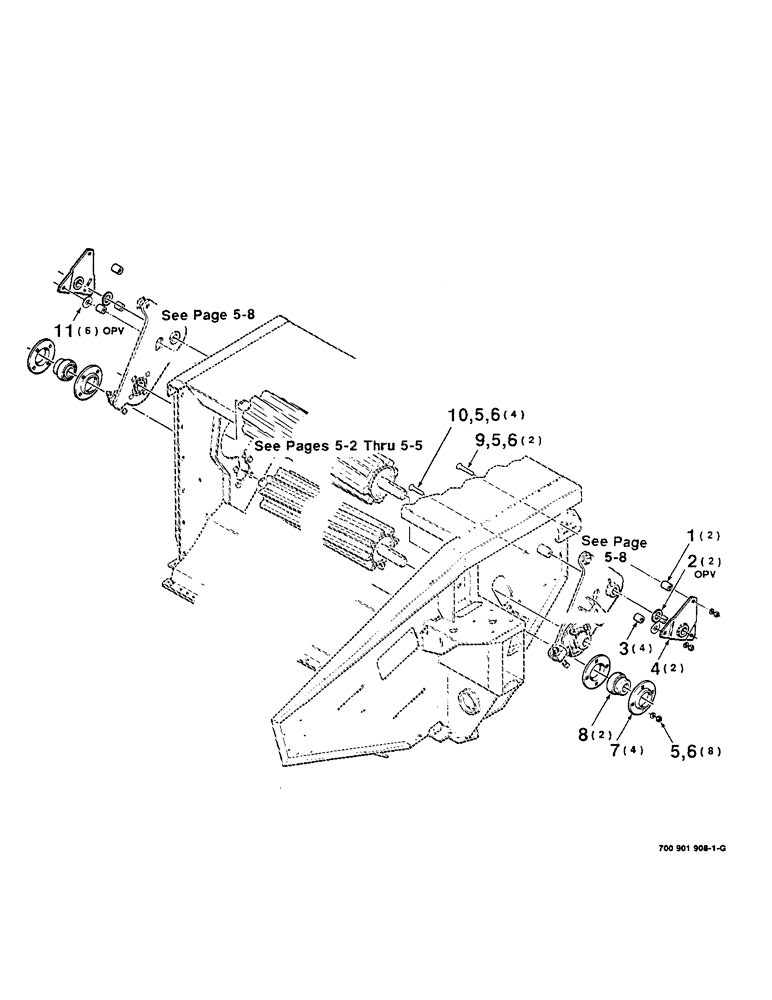

Запчасти Case IH 8330 (5-06) - HAY CONDITIONER BEARING ASSEMBLY (09) - CHASSIS

1

6841613

SPACER

2шт.

2

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 18 GAUGE NRMB

2шт.

3

6893150

SPACER

4шт.

4

700111276

PLATE

- mounting

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

14шт.

7

663562R1

FLANGE

- bearing

4шт.

8

50328

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm

- spherical

2шт.

9

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

2шт.

10

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

4шт.

11

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

6шт.
