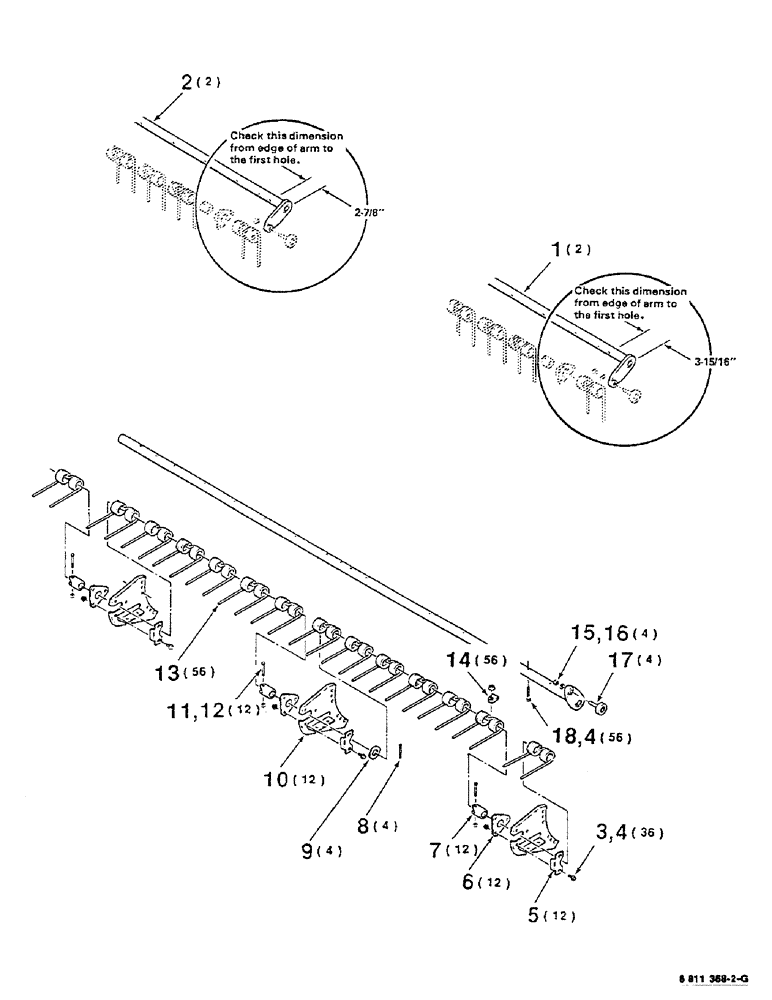

Запчасти Case IH 8330 (4-08) - TINE ASSEMBLY, MODEL 8330 ONLY (09) - CHASSIS

1

6582795

TUBE,109.5 mm Length

- tine "A"

2шт.

2

6582829

TUBE

- tine "B"

2шт.

3

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

36шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

92шт.

5

6831986

COVER

12шт.

6

6105621

FLANGE

HOUSING - bearing

12шт.

7

6105159

NYLON BEARING,1.75"

BEARING - nylon, tine

12шт.

8

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

9

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

4шт.

10

6577282

SUPPORT

- bearing

12шт.

11

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

12шт.

12

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

12шт.

13

750075

TINE

- double

56шт.

14

261024

CLIP

56шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

16

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HJN

4шт.

17

713180

CAM

FOLLOWER

4шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

56шт.
