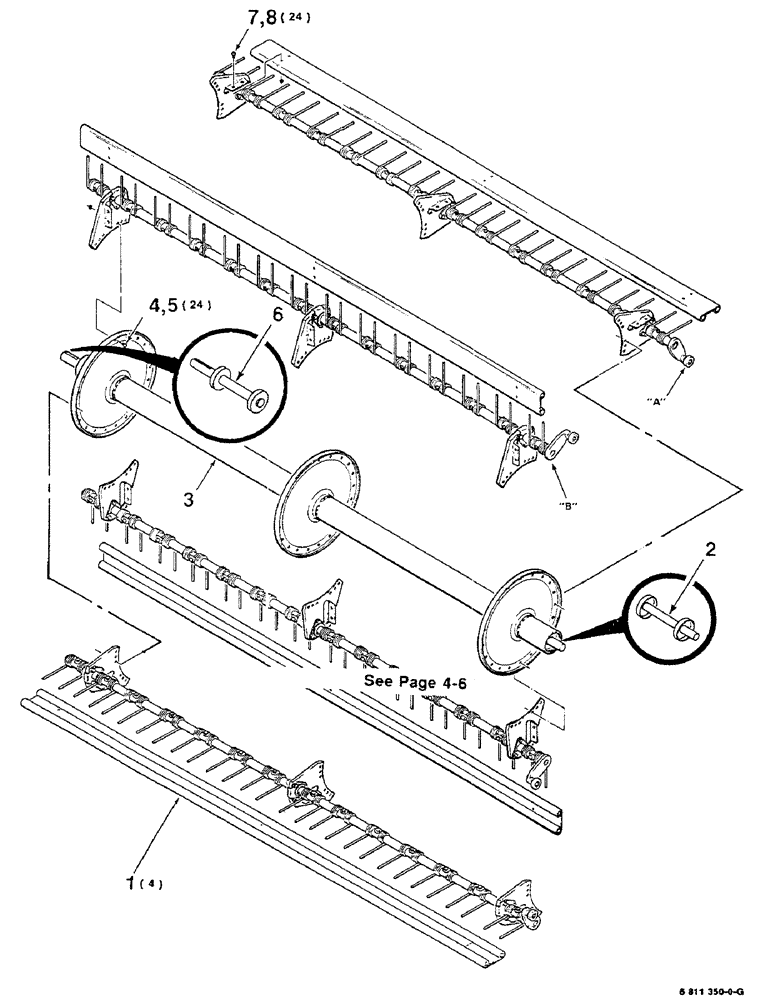

Запчасти Case IH 8330 (4-02) - REEL ASSEMBLY, MODEL 8320 ONLY (09) - CHASSIS

1

7017742

REEL

BAT - reel

4шт.

2

6582720

SHAFT

WA - reel, left

1шт.

3

6584304

TUBE,2386.4 mm Length

- reel (Includes items 2 & 6)

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

24шт.

5

231-5146

FLANGE NUT,3/8"-16

24шт.

6

6582753

SHAFT

WA - reel, right

1шт.

7

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

24шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

24шт.
