Запчасти Case IH 8330 (3-16) - SICKLE, BOLT ON SECTION,S ASSEMBLY, MODEL 8330 ONLY, EXTRA HEAVY DUTY (09) - CHASSIS

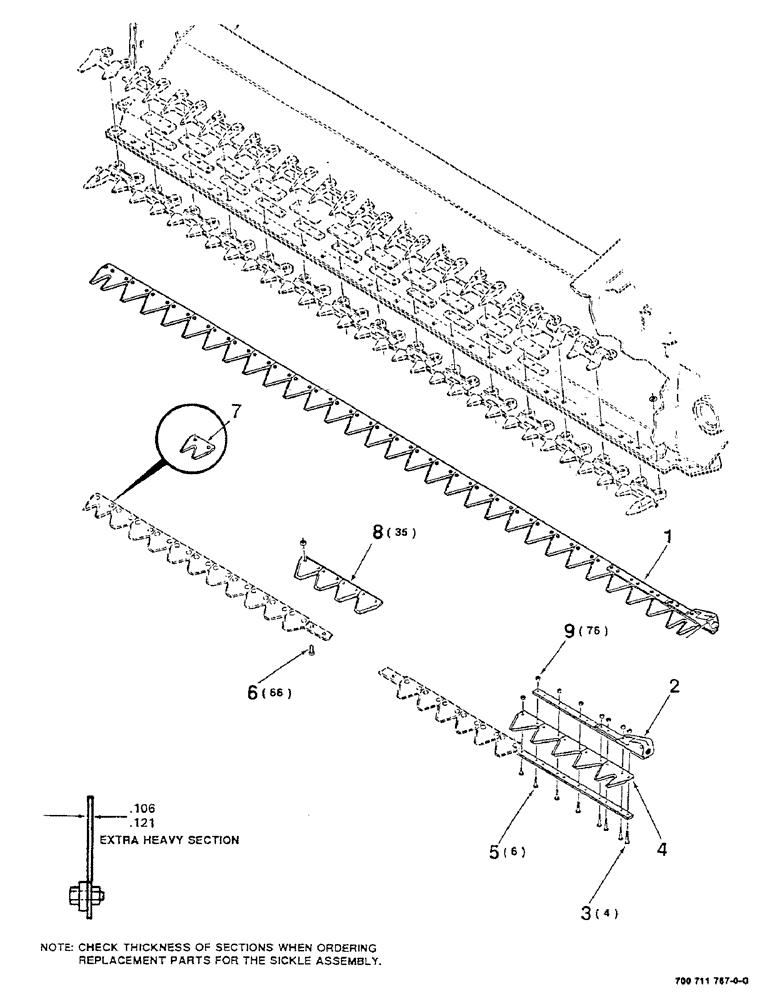

Схема запчастей Case IH 8330 - (3-16) - SICKLE, BOLT ON SECTION,S ASSEMBLY, MODEL 8330 ONLY, EXTRA HEAVY DUTY (09) - CHASSIS
3
7
5
6
8
9
4
1
2

Артикул

Название

Примечание

Количество

1

700709588

KNIFE

SICKLE ASSEMBLY (Extra heavy duty) top serrated

1шт.

700711767

KNIFE

SICKLE ASSEMBLY

1шт.

2

6821078

HEAD

WA - sickle

1шт.

700713251

HEAD

WA - sickle

1шт.

3

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Box of 25 bolts & locknuts)

4шт.

4

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

5

700709663

BOLT AND NUT

#12-24 X 7/8 BOLT (Box of 25 bolts & locknuts)

6шт.

6

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Box of 50 bolts & locknuts)

3шт.

7

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

8

700705300

KNIFE SECTION

SICKLE - section (Extra heavy duty)

35шт.

9

1954816C1

LOCK NUT

#12-24 HCLN (Packaged with bolts)

76шт.

Выбрано товаров: 11
