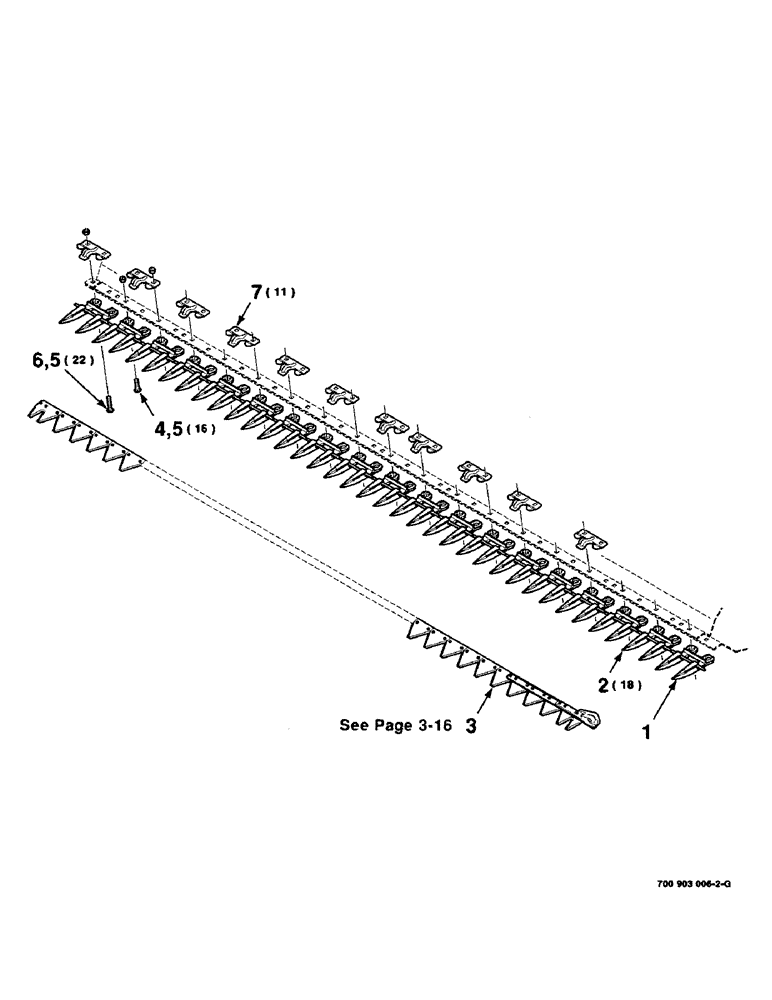

Запчасти Case IH 8330 (3-12) - SICKLE AND GUARD, RANGE, ASSEMBLY, MODEL 8330 ONLY, S/N CFH0005043 AND LATER (09) - CHASSIS

1

700707464

GUARD

- double

1шт.

2

700707147

GUARD

- double

18шт.

3

700709588

KNIFE

SICKLE ASSEMBLY

1шт.

700711767

KNIFE

SICKLE ASSEMBLY

1шт.

4

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

16шт.

5

425-107

NUT,7/16"-14, G5

7/16-14 H

38шт.

6

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

22шт.

7

700111204

CLIP

HOLDDOWN

11шт.
