(3-08) - SICKLE AND GUARD, STUB-ON-STUB, ASSEMBLY, MODEL 8330 ONLY, S/N CFH0003902 AND LATER

Запчасти Case IH 8330 (3-08) - SICKLE AND GUARD, STUB-ON-STUB, ASSEMBLY, MODEL 8330 ONLY, S/N CFH0003902 AND LATER (09) - CHASSIS

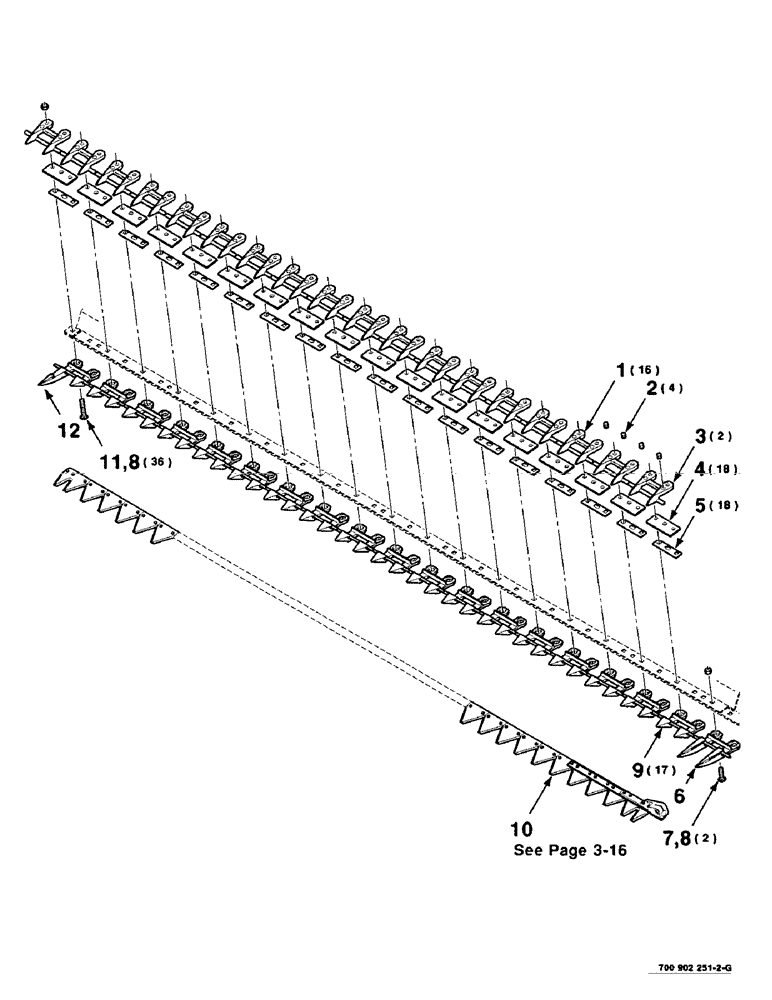

Схема запчастей Case IH 8330 - (3-08) - SICKLE AND GUARD, STUB-ON-STUB, ASSEMBLY, MODEL 8330 ONLY, S/N CFH0003902 AND LATER (09) - CHASSIS
8
3
8
9
12
5
2
1
7
11
4
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700106782

FINGER

GUARD ASSEMBLY

16шт.

2

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OPHSSS, special

4шт.

3

6586622

GUARD

HOLDDOWN - high, clearance (S.N. CFH0003001 thru CFH0005242)

2шт.

700133232

GUARD

- adjustment, top special (S.N. CFH0005243 and later)

2шт.

4

700106256

PLATE

SHIM - upper

18шт.

5

700111956

PLATE

SHIM - lower

18шт.

6

6210645

FINGER

GUARD - double (S.N. CFH0003001 thru CFH0005242)

1шт.

700707464

GUARD

- double (S.N. CFH0005243 and later)

1шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

8

425-107

NUT,7/16"-14, G5

7/16-14 H

38шт.

9

49312

GUARD

- double

17шт.

10

700709588

KNIFE

SICKLE ASSEMBLY

1шт.

700711767

KNIFE

SICKLE ASSEMBLY

1шт.

11

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

36шт.

12

6210652

GUARD

- double

1шт.
