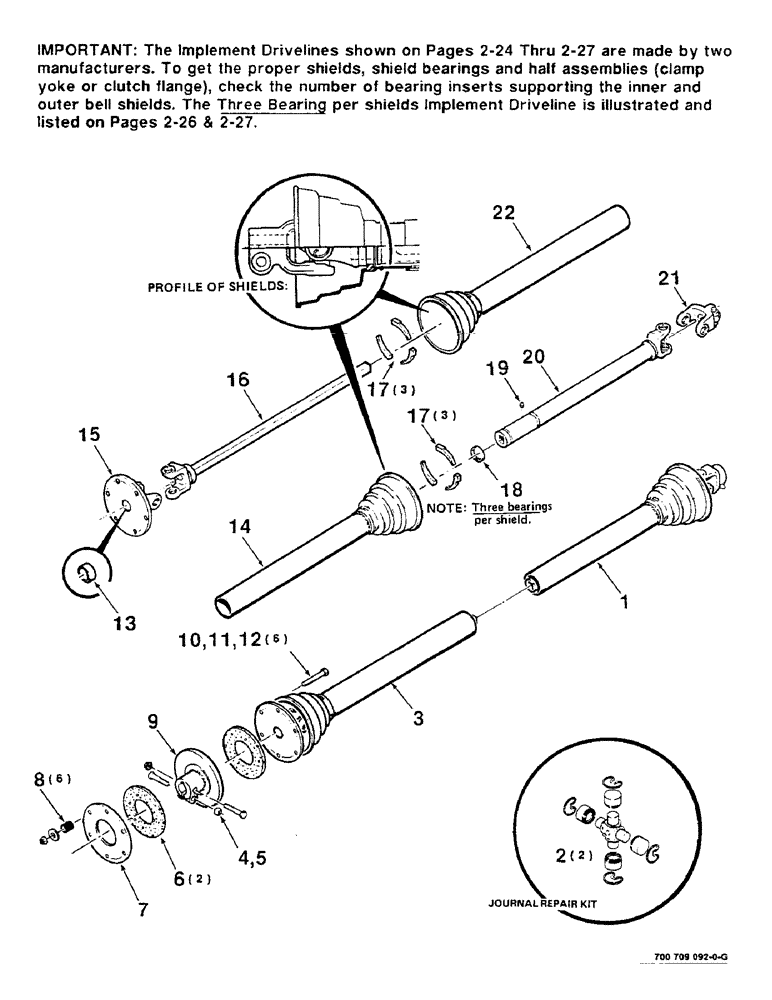

Запчасти Case IH 8330 (2-26) - U-JOINT AND SLIP CLUTCH ASSEMBLY, THREE BEARING (09) - CHASSIS

1

700706867

REAR PTO ASSY

HALF ASSEMBLY - clamp yoke

1шт.

2

753772

KIT

JOURNAL REPAIR KIT

2шт.

3

700706866

REAR PTO ASSY

HALF ASSEMBLY - clutch flange

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

1шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

6

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - clutch

2шт.

7

392464

LARGE PLATE

PLATE - pressure, clutch

1шт.

8

58107

SPRING

- compression

6шт.

9

700111458

HALF-CONNECTOR

CLUTCH PLATE WITH HUB

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

11

495-21044

WASHER,3/8"

6шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

13

52779

BRONZE BUSHING

BUSHING

1шт.

14

700706868

SHIELD

- inner

1шт.

15

7813884

FORK

YOKE WITH FLANGE (Includes item 13)

1шт.

16

7813868

SHAFT

YOKE WITH SHAFT

1шт.

17

700706872

CLIP

BEARING INSERT - shield

6шт.

18

700706870

RING

BEARING - nylon, center

1шт.

19

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

20

7813918

FORK

YOKE & TUBE

1шт.

21

7813934

FORK

YOKE - clamp

1шт.

22

700706869

SHIELD

- outer

1шт.
