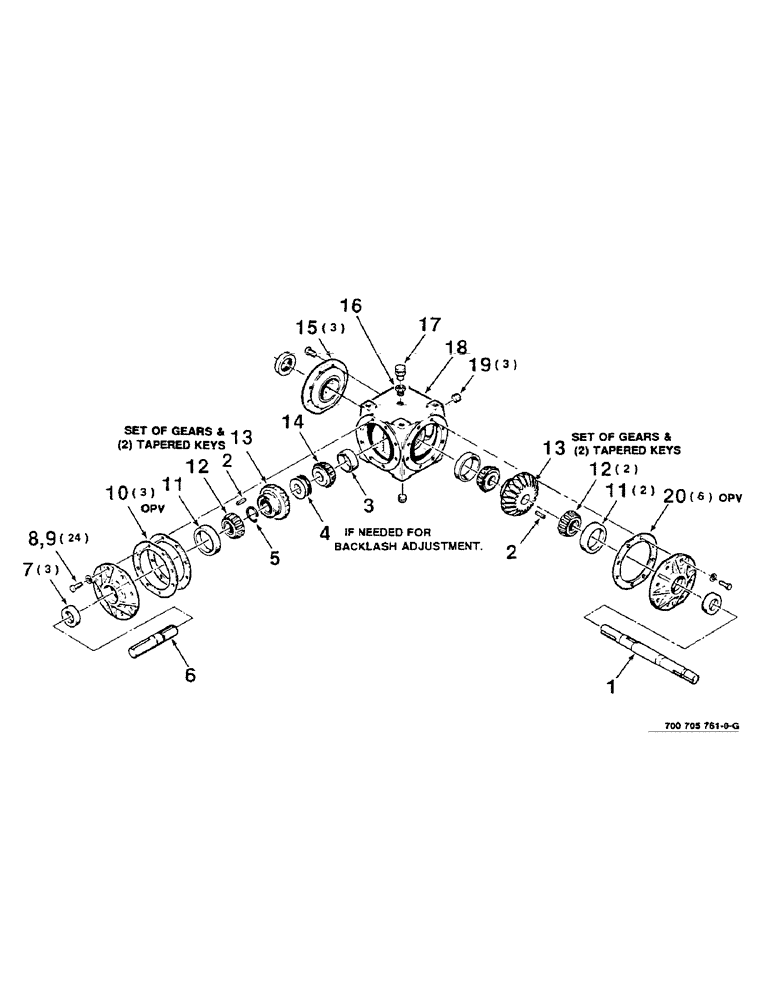

Запчасти Case IH 8330 (2-22) - GEARBOX ASSEMBLY, 700705761 COMPLETE (09) - CHASSIS

700705761

GEARBOX

ASSEMBLY COMPLETE

1шт.

700705761R

REMAN-TRANSMISSION

Remanufactured Gearbox

1шт.

700705761C

CORE-TRANSMISSION

Return Part Number, Gearbox

1шт.

1

700705762

IDLE SHAFT

SHAFT - long

1шт.

2

753574

KEY

- tapered

2шт.

3

651817R1

BEARING CUP

CUP - bearing

1шт.

4

753426

SHIM

(.005)

1шт.

753434

SHIM

(.010)

1шт.

5

757229

RING, SNAP

RING - retainer

1шт.

6

700703549

SHAFT

- short

1шт.

7

76961C1

OIL SEAL

3шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

10

1702224

GASKET

- aluminum (.005)

3шт.

1702232

GASKET

- aluminum (.003)

3шт.

11

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

12

T20939

ROLLER BEARING,1.25" ID x 0.771"

CONE - bearing

3шт.

13

8806317

GEAR-SET

SET OF MATCHED GEARS & (2) TAPERED KEYS

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

1шт.

15

757120

CAP

3шт.

16

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/2 NPTF X 1/8 NPTF M/F REDUCER

1шт.

17

152127H1

BREATHER,1/8"-27, Short

PLUG - vented

1шт.

18

700100292

HOUSING

1шт.

19

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- pipe, socket head

3шт.

20

1702216

GASKET

- aluminum (.015)

6шт.
