Запчасти Case IH 8330 (2-16) - DRIVE, REEL, ASSEMBLY (09) - CHASSIS

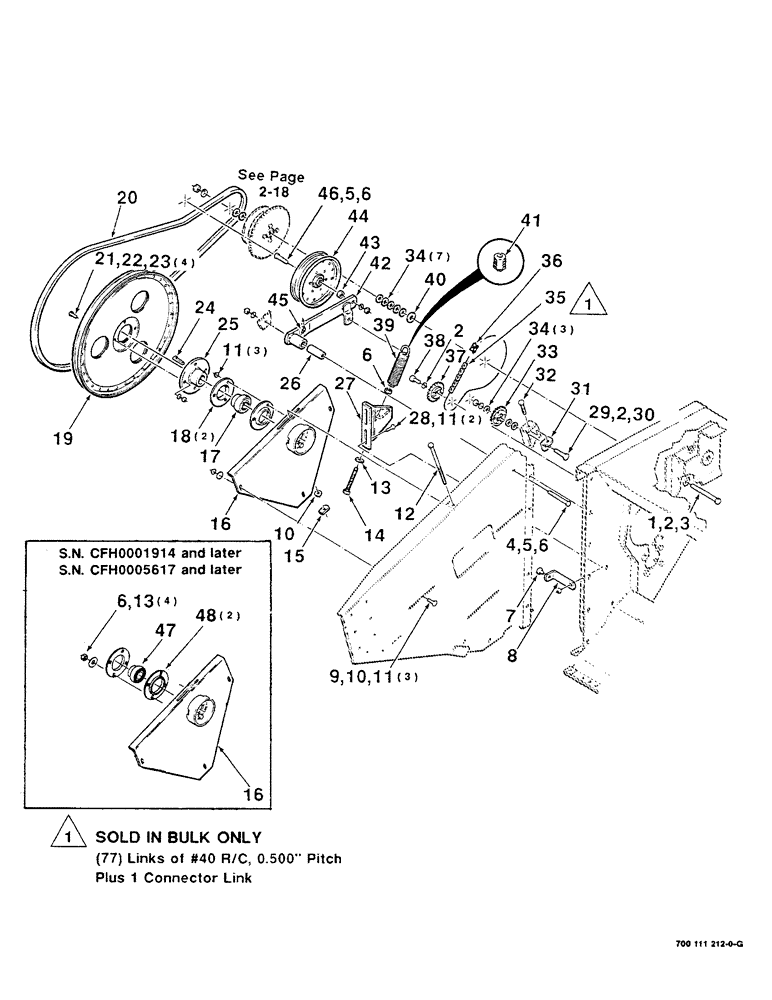

Схема запчастей Case IH 8330 - (2-16) - DRIVE, REEL, ASSEMBLY (09) - CHASSIS
40
8
16
11
34
18
47
12
6
36
7
38
2
34
21
20
17
3
43
26
31
5
13
2
42
14
46
28
2
15
11
39
9
33
11
22
1
6
29
45
35
48
25
23
37
10
6
24
44
41
6
19
4
16
10
5
32
30
13
27

Артикул

Название

Примечание

Количество

1

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

1шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3

425-1010

NUT,5/8"-11, G5

1шт.

4

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

7шт.

7

700706195

BUMPER

- shield

1шт.

8

700111395

STRAP

1шт.

9

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

11

231-5146

FLANGE NUT,3/8"-16

8шт.

12

413-6144

BOLT,Hex, 3/8" - 16 x 9", Gr 5

3/8-16 X 9 SPECIAL BOLT

1шт.

13

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

5шт.

14

873455

SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FTC

1шт.

15

129-471

NUT

WELD NUT

1шт.

16

6582183

PLATE

- right (S.N. CFH0001501 thru CFH0001913, CFH0003001 thru CFH0005616)

1шт.

700130628

PLATE

- right (Includes items 6, 13, 47 and 48)

1шт.

17

713198

BALL BEARING

BEARING - spherical

1шт.

18

617863R1

FLANGED BEARING

- bearing

2шт.

19

51200248

SHEAVE

ASSEMBLY - reel

1шт.

20

7855745

V-BELT,0.875" W x 114.00" L

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 X 5/16 X 2 GIB - key

1шт.

25

700111440

HUB

1шт.

26

6487185

SPACER

TUBE - pivot

1шт.

27

700111437

SUPPORT

- spring

1шт.

28

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

29

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

1шт.

30

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HJN

1шт.

31

700111424

ANGLE

- drawbolt

1шт.

32

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

33

47977

SPROCKET ASSY.

SPROCKET - idler 18T

1шт.

34

52233

BUSHING

5/8 X 14 GAUGE NRMB

10шт.

35

1790D

CHAIN (AG)

CHAIN - roller #40 (10 foot bulk)

1шт.

36

241-1314

CHAIN LINK

LINK - connector #40 R/C

1шт.

37

700111452

SPROCKET

16T

1шт.

38

L115768

BOLT

1/2-13 X 1-1/4 HSHSS

1шт.

39

6189971

SPRING

ASSEMBLY (Includes item 41)

1шт.

40

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

41

6189989

PLUG

- spring

1шт.

42

700111442

SUPPORT

ARM - belt, tightener

1шт.

43

214817

SPACER

1шт.

44

54510

FRONT IDLER

IDLER - flat

1шт.

45

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

46

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

47

50468

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm

1шт.

48

1307583C1

FLANGED BEARING

- bearing

2шт.

Выбрано товаров: 49
