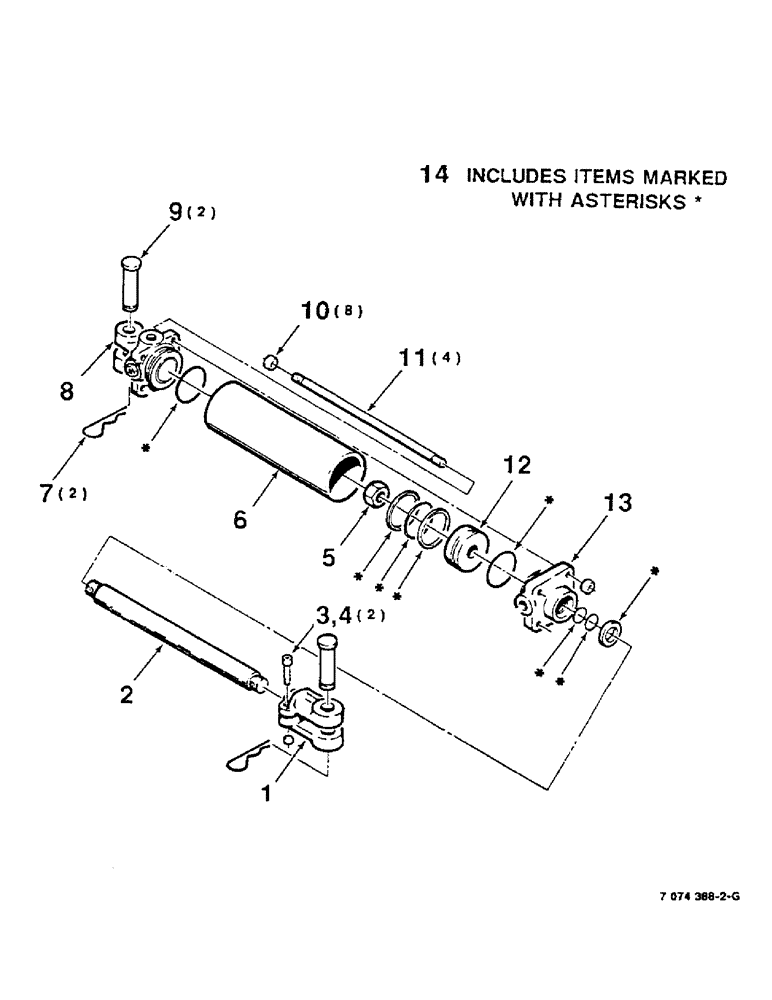

Запчасти Case IH 8320 (8-04) - HYDRAULIC CYLINDER, 7074388 COMPLETE (08) - HYDRAULICS

7074388

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

- hydraulic complete

1шт.

1

T55022

CLEVIS

- piston

1шт.

2

B17244

ROD

- piston

1шт.

3

7701667

HEX SOC SCREW,5/16" - 18 x 1 3/4"

5/16-18 X 1-3/4 HSHCS SPL

2шт.

4

425-105

NUT,5/16"-18, G5

2шт.

5

131-909

LOCK NUT,3/4"-16

NUT - piston

1шт.

6

738112

TUBE

- cylinder

1шт.

7

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

8

B17280

BASE

CLEVIS - cylinder base

1шт.

9

B17284

CLEVIS PIN

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

1256443C1

TIE-ROD

ROD - tie

4шт.

12

B17274

PISTON

1шт.

13

B17268

HEAD

- cylinder

1шт.

14

B17231

KIT

O-RING & SEAL REPAIR KIT, Includes items in art marked with asterisks.

1шт.
