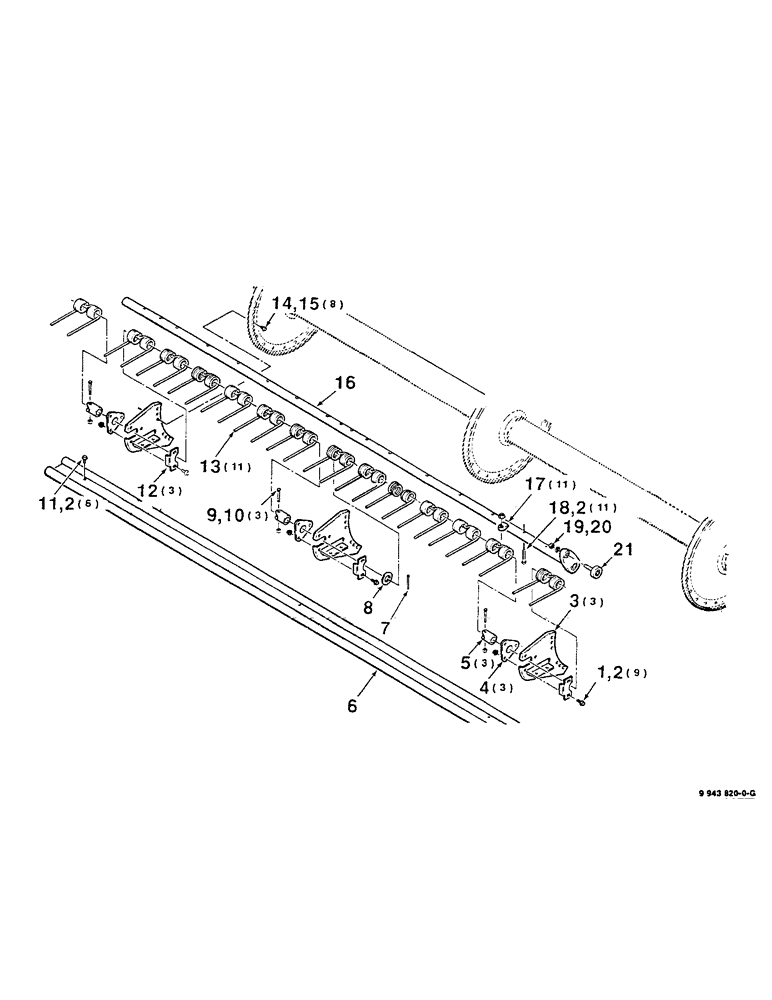

Запчасти Case IH 8320 (9-06) - REEL BAT KIT, EXTRA, MODEL 8320 ONLY, HK10211 COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY (09) - CHASSIS

HK10211

REEL BAT KIT COMPLETE

1шт.

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

9шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

3

6577282

SUPPORT

- bearing

3шт.

4

6105621

FLANGE

HOUSING - bearing

3шт.

5

6105159

NYLON BEARING,1.75"

BEARING - nylon, tine

3шт.

6

7017742

REEL

BAT - reel

1шт.

7

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

8

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

9

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

3шт.

10

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

3шт.

11

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

6шт.

12

6831986

COVER

3шт.

13

750075

TINE

- double

11шт.

14

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

8шт.

15

231-5146

FLANGE NUT,3/8"-16

8шт.

16

6584114

TUBE

- tine "A"

1шт.

17

261024

CLIP

11шт.

18

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

11шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HJN

1шт.

21

713180

CAM

- follower

1шт.
