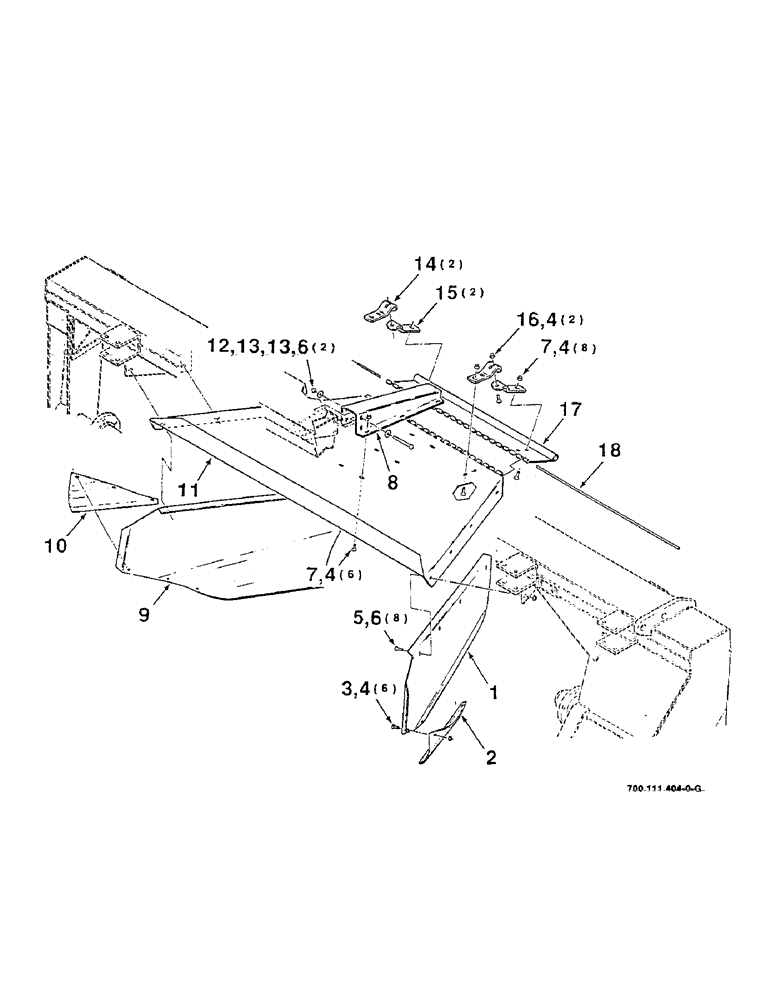

Запчасти Case IH 8320 (7-12) - WINDROW FORMING SHIELDS, MODEL 8320 (09) - CHASSIS

1

700111406

SHIELD

- forming, left

1шт.

2

700111389

EXTENSION

- shield, left

1шт.

3

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

22шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

6

231-5146

FLANGE NUT,3/8"-16

10шт.

7

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

14шт.

8

700111411

SUPPORT

- shield

1шт.

9

700111407

SHIELD

- forming, right

1шт.

10

700111396

EXTENSION

- shield, right

1шт.

11

700111405

SHIELD

- top

1шт.

12

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

2шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

14

6583876

TIGHTENER

HINGE - top

2шт.

15

6583884

TIGHTENER

HINGE - bottom

2шт.

16

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

17

700111410

DEFLECTOR

- rear

1шт.

18

6563795

ROD

PIN - hinge

1шт.
