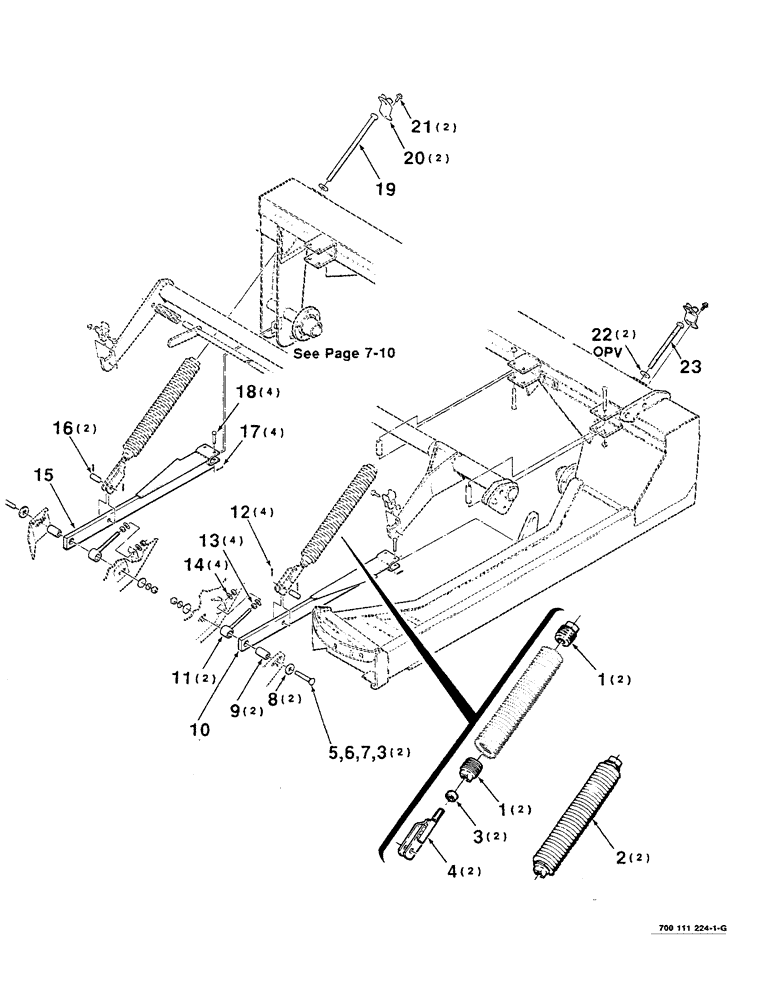

Запчасти Case IH 8320 (7-08) - HEADER FLOTATION ASSEMBLY (09) - CHASSIS

1

378778

SPRING

PLUG - spring

4шт.

2

6582027

SPRING

ASSEMBLY (Includes item 1)

2шт.

700127578

SPRING

ASSEMBLY (Includes item 1)

2шт.

3

425-1012

NUT,3/4"-10, G5

3/4-10 H

4шт.

4

700111308

SPRING

CLEVIS WA - spring mount

2шт.

5

7870322

BOLT

3/4-10 X 4 RHSNB

2шт.

6

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

8

700111316

SQ HOLE WASHER

- special

2шт.

9

700111315

BUSHING

2шт.

10

700111304

ARM

WA - lower, left

1шт.

11

700111312

BOLT

DRAWBOLT

2шт.

12

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

4шт.

13

425-1010

NUT,5/8"-11, G5

4шт.

14

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

15

700111306

ARM

WA - lower, right

1шт.

16

6456719

PIN

2шт.

17

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

18

763110

PIN

1/2 X 2-1/4 CLEVIS PIN

4шт.

19

7773641

BOLT

3/4-10 X 14 FTB

1шт.

20

700111383

LOCKING BAR

LOCK WA - tension

2шт.

21

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

3/8-16 X 1 HWHTCTS

2шт.

22

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

23

7773617

BOLT

3/4-10 X 10 FTB

1шт.
