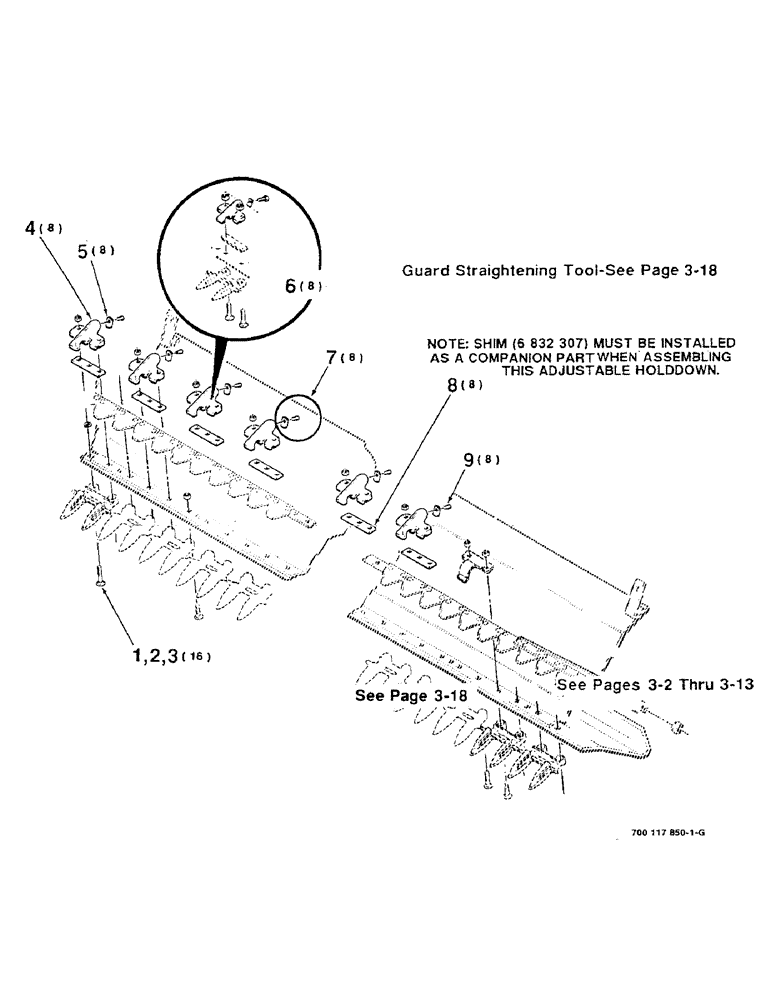

Запчасти Case IH 8320 (3-22) - ADJUSTABLE HOLDDOWN, MODEL 8320 ONLY (09) - CHASSIS

1

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

7/16-14 X 2 RHSNB

16шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

16шт.

4

700117850

CASTING

HOLDDOWN - adjustable

8шт.

5

700703455

NUT

5/16-18 WELD NUT

8шт.

6

700117850

CASTING

HOLDDOWN - adjustable kit (Includes items 1, 2, 4, 5 & 9)

8шт.

7

700107019

KIT

WELD NUT & ADJUSTABLE SCREW KIT (Includes items 5 & 9)

8шт.

8

6832307

SHIM

8шт.

700111956

PLATE

SHIM

8шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.
