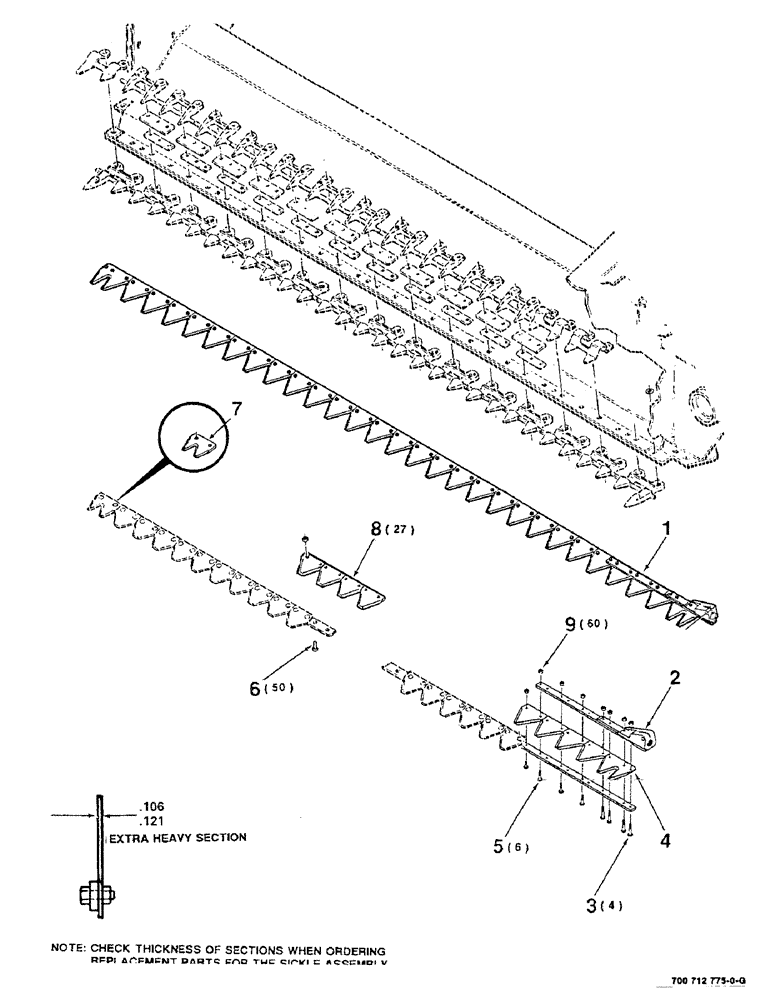

Запчасти Case IH 8320 (3-14) - SICKLE, BOLT ON SECTIONS, ASSEMBLY, MODEL 8320 ONLY, EXTRA HEAVY DUTY (09) - CHASSIS

1

700709587

KNIFE

SICKLE ASSEMBLY (Extra heavy duty) top serrated

1шт.

700712775

KNIFE ASSY

SICKLE ASSEMBLY

1шт.

2

6821078

HEAD

WA - sickle

1шт.

700713251

HEAD

WA - sickle

1шт.

3

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Box of 25 bolts & locknuts)

4шт.

4

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

5

700709663

BOLT AND NUT

#12-24 X 7/8 BOLT (Box of 25 bolts & locknuts)

6шт.

6

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Box of 50 bolts & locknuts)

50шт.

7

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

8

700705300

KNIFE SECTION

SICKLE - section (Extra heavy duty)

27шт.

9

1954816C1

LOCK NUT

#12-24 HCLN (Packaged with bolts)

60шт.
