(3-10) - SICKLE AND GUARD, RANGE, ASSEMBLY, MODEL 8320 ONLY, S/N CFH0001837 AND LATER

Запчасти Case IH 8320 (3-10) - SICKLE AND GUARD, RANGE, ASSEMBLY, MODEL 8320 ONLY, S/N CFH0001837 AND LATER (09) - CHASSIS

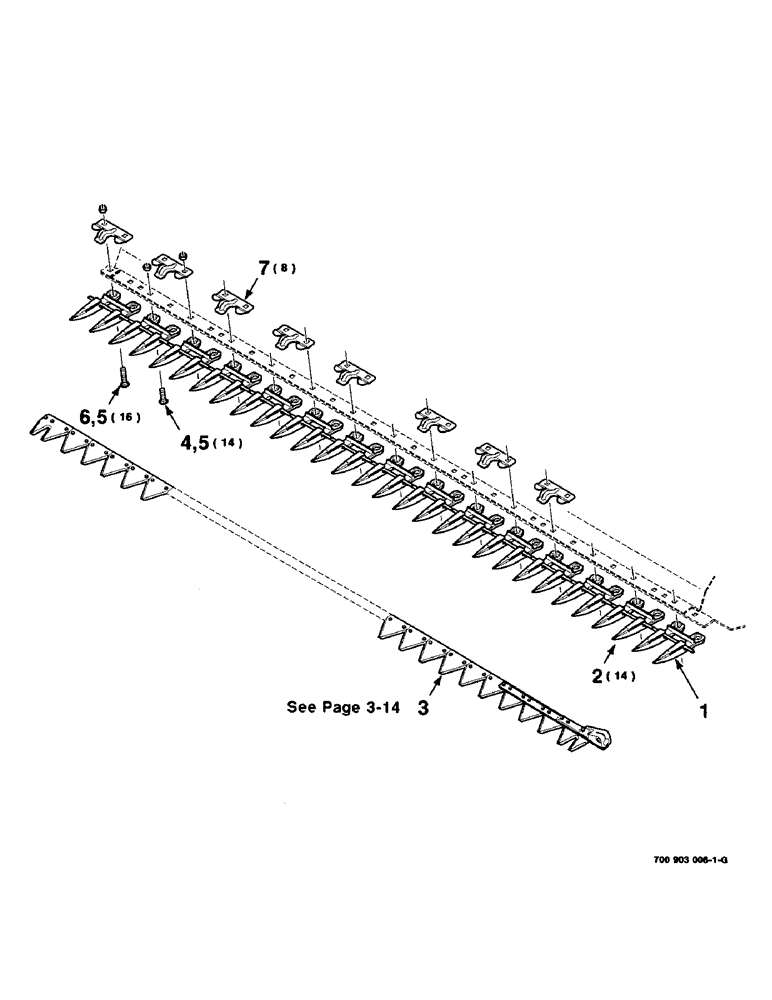

Схема запчастей Case IH 8320 - (3-10) - SICKLE AND GUARD, RANGE, ASSEMBLY, MODEL 8320 ONLY, S/N CFH0001837 AND LATER (09) - CHASSIS
5
5
1
4
6
7
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700707464

GUARD

- double

1шт.

2

700707147

GUARD

- double

14шт.

3

700709587

KNIFE

SICKLE ASSEMBLY

1шт.

700712775

KNIFE ASSY

SICKLE ASSEMBLY

1шт.

4

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

14шт.

5

425-107

NUT,7/16"-14, G5

7/16-14 H

30шт.

6

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

16шт.

7

700111204

CLIP

HOLDDOWN

8шт.

Выбрано товаров: 8
